Indo Farm Power-14FNX

Pick & Carry Crane

The Indo Farm Power-14FNX is a 14-ton pick-and-carry crane equipped with a 4-part telescopic boom offering a maximum height of 15.22 meters and a horizontal reach of 12.8 meters. Featuring a 50 HP engine, articulated hydraulic steering, and fail-safe lifting systems, it combines high lifting capacity with maneuverability for industrial and infrastructure projects.

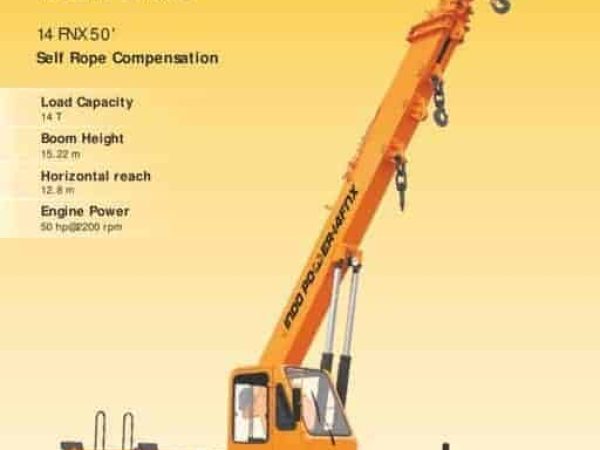

⬇ DOWNLOADS ⬇

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Product Description

The Indo Farm Power-14FNX is a powerful and compact hydraulic mobile crane built for high-lift performance and operational versatility. With a rated lifting capacity of 14 tons at a 1.7-meter radius, it handles up to 1 ton at its full 12.8-meter horizontal outreach. The 4-part telescopic boom comprises three hydraulic sections and a fourth power-extended, manually pinned stage, delivering a vertical lift height of 15.22 meters.

The crane is driven by the Indo Farm 3050 DI engine, a 4-cylinder, water-cooled diesel engine delivering 50 HP at 2,200 rpm. This is paired with a heavy-duty sliding mesh gearbox offering 8 forward and 2 reverse gears and a high/low range selector for terrain adaptability. The crane can travel at speeds up to 30 km/h and grade slopes up to 40% when unladen.

Articulated steering, supported by dual double-acting hydraulic rams, offers up to 45° articulation with a minimum turning radius of 8 meters—enhancing its ability to navigate restricted spaces. The chassis features a straight rear axle and high ground clearance for rough terrain applications.

The lifting system is powered by a heavy-duty winch using a four-fall wire rope mechanism with fail-safe brakes, and the hydraulic system includes a vane or gear-type pump delivering flow to a 3-spool double-acting control valve with a pressure relief mechanism.

The Power-14FNX stands on four 11.00×20 – 16 PR front tyres and two 14.00×25 – 20 PR rear tyres, supporting an operating weight of 12,300 kg. Its total dimensions are 11,320 mm (L) × 2,450 mm (W) × 2,990 mm (H).

Standard features include an all-weather ergonomic operator cabin, reflectors, rear-view mirrors, lighting systems, and a tool kit. Safety systems include fail-safe hoist brakes, hose failure protection via counterbalance valves, over-hoist warning system, and a self-adjusting hook block.

Optional accessories and upgrades include a man basket, safe load indicator, air brakes, AC cabin, outriggers, rear-view camera, six-fall rope, and an extended operating cabin.

The Indo Farm Power-14FNX offers a perfect balance of lifting strength, boom reach, and operational safety—making it a trusted workhorse for construction, maintenance, and heavy logistics applications.
