Comansa 5LC4510

The 5LC4510 crane has a maximum reach of 45 metres and, like the rest of the models in the 500 Series, comes in 4 and 5-tonne versions. It can move loads of up to 1,000 kg at its maximum radius, plus an additional 10% when the PowerLift system is activated.

The optional hoist motors available for the 5LC4510 include the 18 kW version with frequency control, enabling optimal load control by the operator at speeds of up to 92 metres per minute.

Additional Information

Downloads

Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

thumbnail of 5LC4510-4_spec_mt_en_vDS130705
Metric, EN (4 ton)
thumbnail of 5LC4510-4_spec_mt_en_vDS182305
Metric, EN (4 ton)

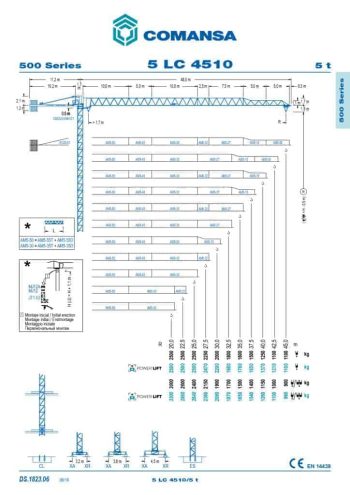

thumbnail of 5LC4510-5_spec_mt_en_vDS130706
Metric, EN (5 ton)

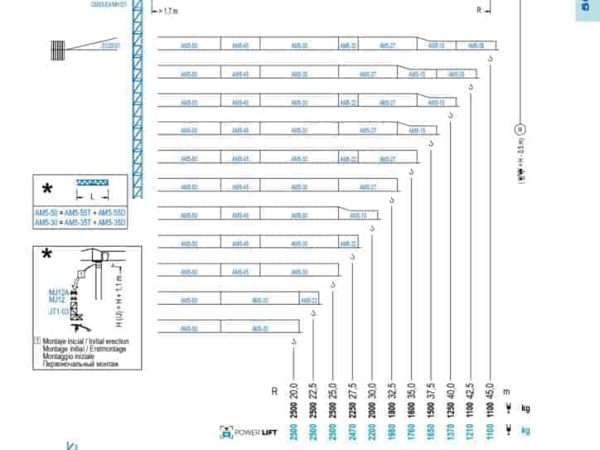

thumbnail of 5LC4510-5_spec_mt_en_vDS182306
Metric, EN (5 ton)
