Canduela C695
The Canduela C695 is a 2.5-ton hammerhead tower crane designed for mid-rise construction applications. With a maximum capacity of 2,500 kg and a tip load of around 1,000 kg at 55 meters, this model is characterized by its modular configuration, flexible reach options, and freestanding heights up to 40 meters without tie-in support.
GET SPEC SHEET
*Crane Specifications, Load Charts, and Crane Manuals are for reference only.
Contact the crane manufacturer for manuals to operate the crane properly.

Product Description
The C695 from Canduela is a hammerhead-type tower crane, ideally suited for urban construction where precision and reach are critical. It offers a maximum lifting capacity of 2,500 kg at reduced radii, and can maintain a respectable tip load of 1,000 kg at its maximum reach of 55 meters. This allows the C695 to handle moderate loads even at extended radii, making it well-suited for placing steel, formwork, or precast materials.

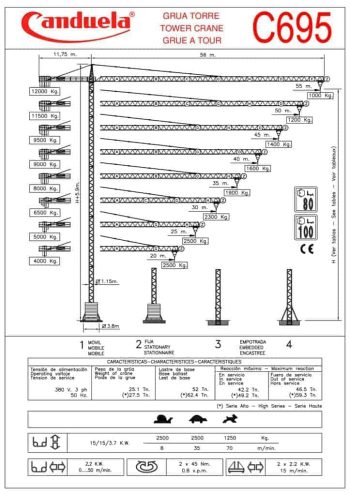

The crane is offered with modular jib lengths ranging from 22 to 55 meters, configured through various standard segment types like S4, S8, M, and X12, which can be combined to suit project-specific needs. The tower height without tie-ins can reach up to 40 meters, providing sufficient clearance for most mid-rise structures.

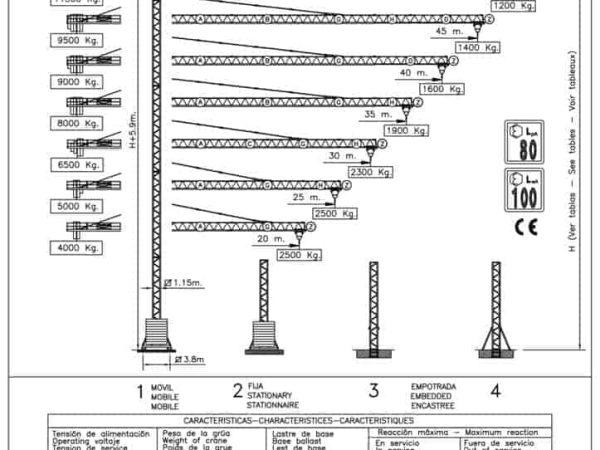

The base types are customizable, with options for different site anchoring solutions (labeled 1-2-3-4 in the document), depending on ground conditions or installation preferences. The crane includes common European design standards such as flat-top geometry and is compatible with bracing or anchoring systems for greater freestanding heights if required.
Its structural configuration is optimized for transport and rapid erection on-site, with modular jib and mast segments that allow for crane reach to be tailored from as little as 25 meters up to a full 55-meter working radius. This adaptability ensures efficient operation on constrained or phased job sites.
Overall, the Canduela C695 balances lifting power, reach, and urban-friendly setup, and is ideal for contractors working in dense environments needing reliable tower crane support.
