Wilbert WT 2405L e.tronic

The Wilbert WT 2405L e.tronic represents the pinnacle of luffing jib tower crane design, engineered by German manufacturer Wilbert as part of its “Heavy Lifter” series. Known for its immense strength and intelligent modular design, the WT 2405L was designed to serve the most demanding lifting operations, including power plant construction and large-scale infrastructure projects.

One of its standout features is its maximum lifting capacity of 128 tonnes, which positions it as one of the strongest luffing jib tower cranes in Europe. The crane’s lifting performance is backed by an innovative pendular counter-ballast system—a unique feature that dynamically reduces the torque load on the tower structure, resulting in superior stability during high-load operations.

The jib itself ranges from 36 meters to 78 meters, extendable in 6-meter sections, allowing the crane to be tailored to the site requirements. Instead of a traditional triangular profile, the WT 2405L uses a rectangular-shaped jib cross-section, enhancing torsional stiffness and structural performance, particularly over long spans. A 5-meter runner head is also included, capable of lifting 8 tonnes at a speed of 140 m/min, which is ideal for fast, repetitive lifting cycles.

The WT 2405L e.tronic is built around modular tower elements, which can be installed with slewing units onto a 3.3-meter wide tower system, typically assembled in 5-meter sections. This modular design not only allows for easy adaptation to different job site heights and requirements but also greatly simplifies assembly and disassembly. Individual components are designed to be handled safely and efficiently, with quick pin-release connections to reduce setup time and manpower needs.

Operator comfort and control are central to the design philosophy. The crane is equipped with a 9-window ergonomic operator cabin, providing excellent visibility of the lifting area. For long-term use, especially on high-rise projects, the cabin can be fitted with a separate sanitation module, including a toilet facility with a 200-liter fresh water tank, 250-liter waste water tank, wash basin, and a 24V refrigerator—providing one of the most self-contained operator environments in the industry.

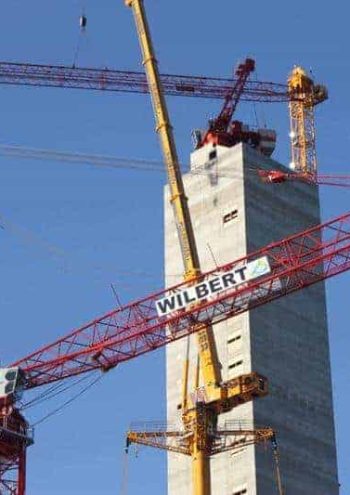

The milestone moment for the WT 2405L e.tronic came on 31 August 2010, when the 200th unit of Wilbert tower cranes was delivered for a power station project in Mannheim, Germany. This particular crane, with a lifting capacity of 128 tonnes, was scheduled for a two-year deployment, ultimately reaching a final working height of 130 meters. It was part of a larger fleet of Wilbert cranes supporting the complex operations at the site.

In summary, the Wilbert WT 2405L e.tronic blends sheer lifting power with intelligent design and operator-focused features. With its unmatched lifting strength, modular configuration, advanced stability systems, and high-speed hoisting, it sets a benchmark for large luffing jib tower cranes in Europe and beyond—tailored for major industrial, high-rise, and power generation projects.
