Ivanovets KC-35714K-2-10

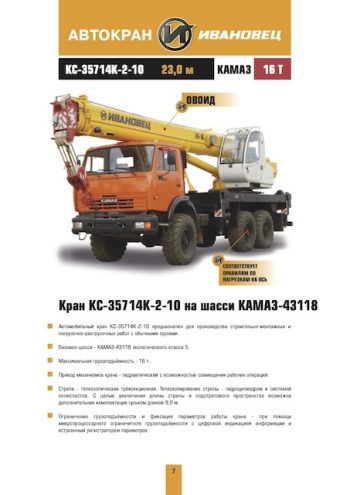

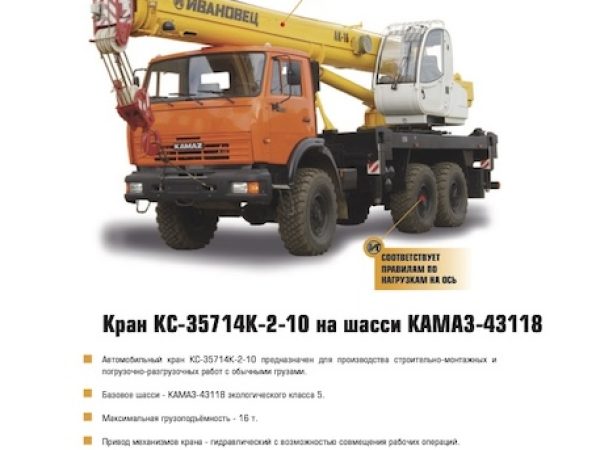

The Ivanovets KC-35714K-2-10 is an advanced 16-ton truck-mounted crane, specifically engineered for a broad range of construction, assembly, and loading operations. Mounted on the reliable KAMAZ-43118 chassis, this model features a three-section telescopic boom that extends up to 23 meters. With its capability to handle both regular and hazardous materials, the crane is exceptionally versatile and suitable for various industrial applications.
Downloads
*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.
Related Models
Product Description
The KC-35714K-2-10 has a maximum lifting capacity of 16 tons, designed to efficiently manage both regular and potentially hazardous loads, making it an indispensable tool for projects requiring diverse lifting capabilities.
Chassis and Mobility
- Chassis: The crane is mounted on a KAMAZ-43118 chassis featuring a 6×6 wheel configuration. This setup provides enhanced stability and mobility across challenging terrains.
- Engine: It is equipped with a KAMAZ 740.705-300 engine delivering 221 kW (300 horsepower), ensuring powerful performance and reliability during lifting and transit operations.
Boom and Jib Configuration
- Boom Length: The boom extends from 8.9 meters to 23.0 meters, allowing substantial reach and flexibility for a range of operational needs.
- Jib Option: A 9.0-meter jib can be added, extending the maximum lifting height to 32.2 meters and enhancing the crane’s functionality for higher or more distant lifts.
Safety and Control Systems
- Lifting Limiter: Features a microprocessor-controlled lifting limiter with a digital display and a built-in data recorder. This advanced system enhances operational safety by monitoring and regulating load and operation parameters, ensuring stability and precision during lifting operations.
Operational Specifications
- Lifting Speeds: Offers a lifting speed range from 0.2 to 9.0 meters per minute, with a maximum speed for hook lifting at 35.0 meters per minute.
- Slewing Speed: Provides a slewing rate of 0.3 to 2.5 rotations per minute, enabling efficient maneuverability and placement of loads.
- Travel Speed: Capable of reaching speeds up to 60 km/h, facilitating efficient transitions between job sites.
Physical Dimensions and Weight
- Dimensions: The crane’s overall length in transport mode is 10,800 mm, with a width of 2,500 mm, and a height of 3,830 mm.
- Weight: With the main boom installed, the equipped mass is 20.00 tons, which slightly increases to 20.35 tons with the jib attached.
Overall, the Ivanovets KC-35714K-2-10 crane combines durability, versatility, and advanced engineering to meet the rigorous demands of modern construction sites, providing reliable performance with its enhanced lifting capabilities and safety features.
