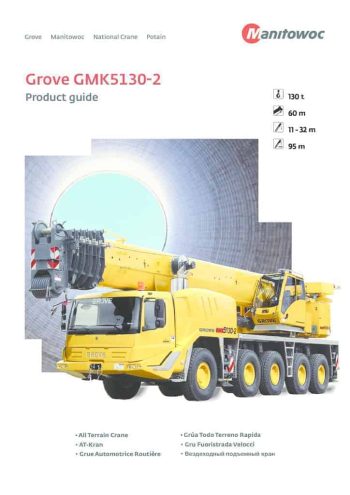

Grove GMK5130-2

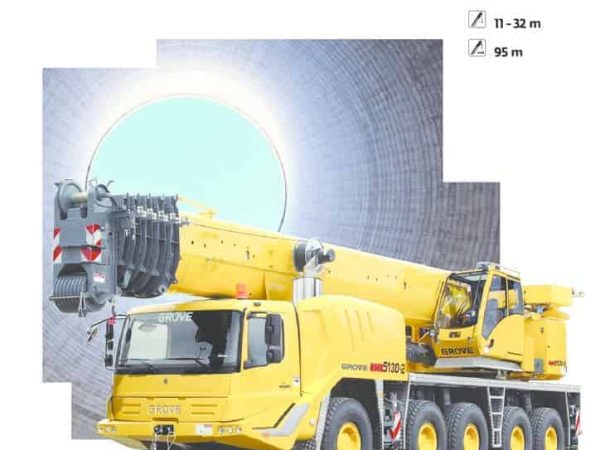

The Grove GMK5130-2 represents a high-capacity all-terrain solution, designed for demanding lifting operations while maintaining excellent road mobility. Debuting as part of Grove’s reputable GMK line, this 130-ton capacity crane is mounted on a specially engineered five-axle chassis using Grove’s proprietary MEGATRAK® independent hydropneumatic suspension system. This ensures optimal off-road performance and road handling. The crane operates with a 10x6x10 drive/steer configuration, with optional 10x8x10 for even greater traction.

The superstructure is fitted with a six-section 12.9 to 60.0-meter TWIN-LOCK™ boom, delivering a maximum tip height of 63 meters. It supports multiple extensions, including an 11/18-meter hydraulic swingaway jib with offsets from 0° to 40°, and optional lattice extensions up to 32 meters, enhancing its reach for various applications.

Powering the superstructure is a Mercedes-Benz OM904LA diesel engine producing 129 kW (175 hp), while the carrier is driven by a more powerful Mercedes-Benz OM502LA eight-cylinder diesel engine delivering 375 kW (503 hp), compliant with EUROMOT/EPA Tier 4i emission standards. The GMK5130-2 also boasts a 16-speed Mercedes G 240-16 EPS transmission, and its sophisticated control system is fully electronic via CAN-BUS, integrating engine management and crane operation.

The crane includes a modular counterweight system with a base 8.5-ton package, expandable to 40.1 tons. The operator cab offers excellent visibility, ergonomic controls, and comfort features such as heating and optional air conditioning. With its strong lifting capabilities, advanced control technology, and adaptability on diverse job sites, the GMK5130-2 continues Grove’s tradition of reliable, high-performance mobile cranes.
