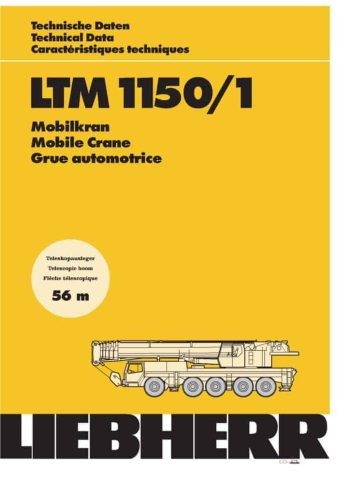

Liebherr LTM 1150/1

Crane Carrier Specifications

• Frame and Outriggers: The LTM 1150/1 features a high-tensile structural steel frame, ensuring durability and stability. The crane is equipped with a 4-point support system with all-hydraulic horizontal and vertical operation, facilitating precise leveling and enhanced stability during lifts.
• Engine and Transmission: Powered by a water-cooled Liebherr Diesel engine producing 544 HP at 2100 rpm, with a maximum torque of 2500 Nm at 1100 – 1400 rpm, coupled with an Allison automatic transmission. This setup includes a torque converter and hydrodynamic retarder, enhancing the crane’s operational efficiency across varied terrains.
• Axles and Suspension: All six axles are steered, with axles 1, 4, and 5 featuring planetary gears and differential locks. The hydro-pneumatic suspension and hydraulic locking facility provide superior ride quality and load handling capability on uneven surfaces.

Crane Superstructure Capabilities

• Crane Engine and Control: The superstructure is powered by a separate engine system, ensuring dedicated functionality for lifting operations. The crane control system allows simultaneous operation of four working motions, enhancing job site productivity.
• Telescopic Boom and Lifting Capacity: The LTM 1150/1 is equipped with a 56-meter telescopic boom, comprising one base section and five telescopic sections, which can be extended independently under load, providing significant reach and flexibility.
• Safety and Additional Features: Equipped with the LICCON safe load indicator, this model includes advanced safety systems to prevent hydraulic system and hose ruptures, ensuring safe operations.

Additional Equipment

• Jib and Extension Options: The crane comes with a folding jib measuring 11.2 m to 28 m, mountable on the telescopic boom at 0°, 20°, or 40°, enhancing the crane’s versatility in handling complex lifting scenarios. A 7 m long telescopic boom extension offers further reach, suitable for projects requiring high hook heights.
• Drive and Tyre Specifications: The crane is equipped with 10 tyres sized 14.00 R 25, and additional drive on the 1st axle, aiding in superior traction and maneuverability.

Overall, the Liebherr LTM 1150/1 combines high lifting capacities with extensive reach and robust engineering, making it a highly capable and versatile choice for large-scale construction projects, industrial applications, and infrastructure developments.
