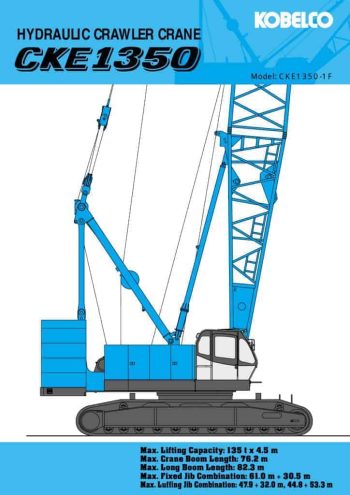

Kobelco CKE1350-1F

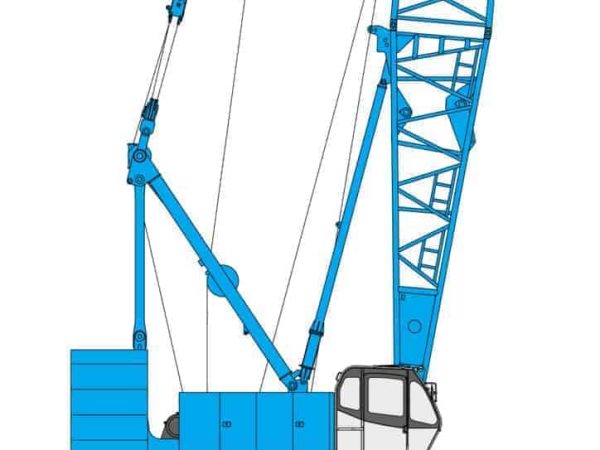

The Kobelco CKE1350-1F crawler crane, rated at 135 metric tons, is a modern, transport-efficient lifting machine engineered to deliver strong performance across various civil and industrial applications. Its structural design and hydraulic systems are optimized for mid-range heavy-duty operations requiring a balance of reach, capacity, and rapid deployment.

The crane’s main boom spans from 15.2 meters to 76.2 meters, utilizing a pin-connected lattice structure for maximum strength and modular assembly. For additional versatility, a luffing jib is available from 21.3 meters to 61.0 meters, enabling complex boom-jib combinations to reach working tip heights exceeding 100 meters. This flexibility makes it suitable for work on tall structures, power stations, or confined urban sites.

A Hino J08E-VM diesel engine, delivering 213 kW (286 hp) at 2,100 rpm, powers the crane, meeting Tier 3 / Stage IIIA emissions standards. Its hydraulic drive system ensures precise and responsive control over travel, swing, hoisting, and boom operations. Both the main and auxiliary winches support a maximum line pull of 132 kN (13.5 metric tons) and operate at line speeds up to 110 m/min, enabling efficient lifting cycles.

The CKE1350-1F’s undercarriage features hydraulic extendable and retractable crawler frames, which enhance both jobsite stability and transport convenience. Its self-assembly counterweight system allows setup with minimal additional lifting equipment, expediting crane mobilization and reducing jobsite downtime.

The crane’s fully enclosed operator cab is ergonomically designed with air conditioning, wide-angle visibility, and a multi-function color monitor that provides real-time load data, crane configuration status, and system diagnostics. Integrated Kobelco KCross telematics enables remote monitoring of crane location, operation hours, and maintenance needs.

Renowned for its reliability, adaptability, and ease of maintenance, the Kobelco CKE1350-1F continues to be a favored choice for contractors who require a high-performance, mid-capacity crawler crane that is equally efficient on transport logistics and jobsite productivity.
