Kobelco SL6000

The Kobelco SL6000 crawler crane will make its North American debut at ConExpo/Con-AGG 2008 in March. The 600-ton SL6000 is a new model addition, at the top end of Kobelco’s comprehensive range of crawler cranes.

Additional Information

Max. Rated Capacity

Downloads

Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

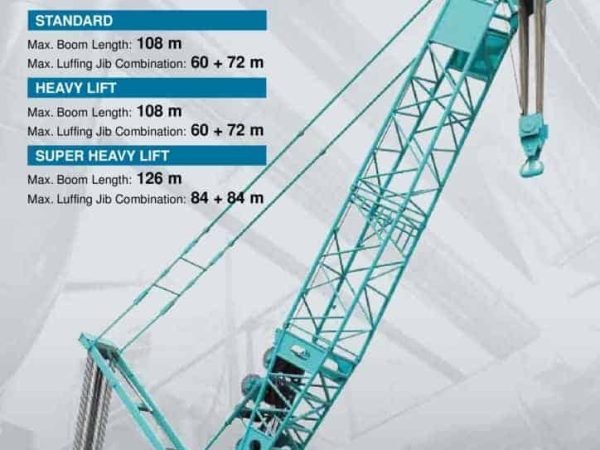

thumbnail of SL6000_cata_en_EU1
Brochure, EN (EU1)
thumbnail of SL6000_cata_en_EU2
Brochure, EN (EU2)
thumbnail of SL6000_spec_lb_en_L1
Imperial, EN
thumbnail of SL6000_spec_mt_en_EU1
Metric, EN (EU1)
thumbnail of SL6000_spec_mt_en_EU2
Metric, EN (EU2)
thumbnail of SL6000 spec mt en EU3
Metric, EN (EU3)

Product Description

The SL6000 features three different configurations. The standard crane has a 276-foot maximum standard main boom; 354-foot maximum long boom; and a Luffer option of 197-foot main boom plus 236-foot luffing jib. The heavy-lift crane configuration includes the standard main boom and long boom, plus a Luffer option of 217-foot main boom and 236-foot luffing jib. The super heavy-lift configuration includes HL Mast and an additional 551,400 pounds of palette counterweight; 276-foot maximum standard boom; 413-foot maximum long boom; and a Luffer option of 276-foot main boom plus 276-foot of luffing jib.

The 1,082-square-foot footprint of the SL6000 gives it stability throughout the full 360 degrees rotation. Powered by a Tier 3-compliant Hino E13C-UV, 429-hp diesel engine, with six variable-displacement hydraulic pumps, the SL6000 offers many of the Kobelco features that contribute to ease of assembly, control and a comfortable cab with all-around visibility.

The SL6000 can be broken down into easily transportable sub-assemblies. The largest individual part is the 9’10”- wide car body and upper-structure assembly weighing 141,000 pounds, which itself can be broken down to 91,100 pounds for the upper-structure and 49,900 pounds for the car body with a quick-connection system. By removing the mast assembly with an easy-attachment system, it can be further reduced to 70,600 pounds.

READ MORE:  Hitachi KH180-3

Each fully assembled crawler-track assembly weighs 88,200 pounds, and the boom and jib sections can be nested for transportation. Main winch, auxiliary winch (and optional luffing jib winch) are located in the lower boom, reducing the transportation weight of the base machine. In order to reduce the assembly time and to further reduce the transportation weight of the base machine, Kobelco designed the SL6000 with the boom winch mounted on the mast and with the boom wire rope already reeved through the sheaves of the upper and lower spreader. Assembly on-site can be completed in two to four days depending on the configuration.

“Our engineers have continued their legacy of providing solutions to customers needs,” said Jack Fendrick, Kobelco Cranes North America’s general manager. “This machine can not only pick the heavy loads but moves easily and has the standard Kobelco reliability that has built our reputation.”

Milestones

Weldex orders first two Kobelco SL6000 in Scotland

READ MORE:  Kobelco 7035

The crane was configured with a 48m main boom and 30m luffing jib to erect a turbine blade and nacelle for a 5 MW wind turbine. It was trial wind farm being built on the site of a working oil rig in the Beatrice Oil Field, 25km off the north coast of Scotland.
