Nippon Sharyo DHP85-2 M65D

Foundation Machines, Pile Driver

Driving piles efficiently is a critical aspect of heavy-duty construction, and the DHP85-2 M65D Hydraulic Pile Driving Rig by NISSHA is engineered to excel in this challenging task.

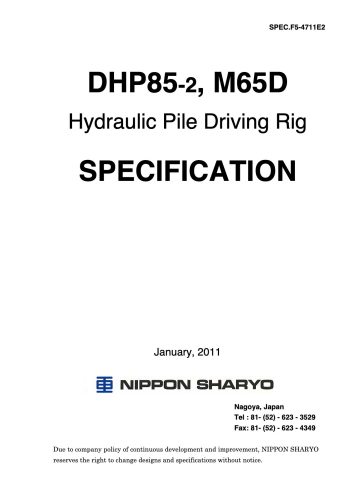

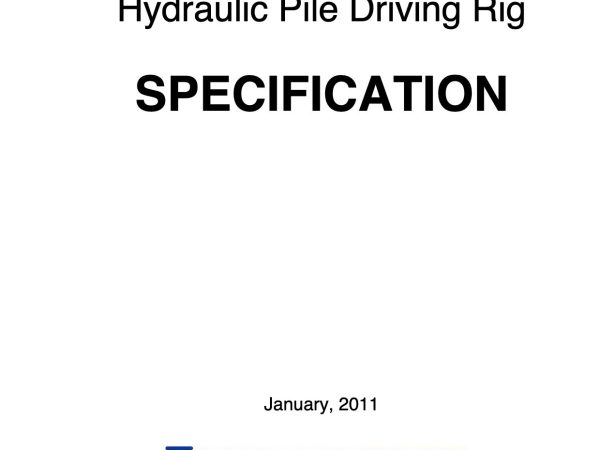

Downloads

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models

Product Description

Versatile Pile Driving Capability: The DHP85-2 is designed for heavy-duty pile driving work and is equipped with the powerful NISSHA NH70-2 hydraulic pile hammer. It also accommodates an earth auger drive, offering versatility in handling various pile types.
Durability and Stability: The machine’s durable cylindrical leader, coupled with a pair of back stays mechanism, ensures a high degree of durability and stability. This robust construction is essential for withstanding the demanding conditions of pile driving.
Exceptional Maneuverability: With a maximum operating weight of 863kN (88,000kgf), the rig demonstrates excellent maneuverability on-site. The independent traveling mechanism allows for pivot and spin turns, providing smooth and continuous crawler steering.
Effortless Positioning: The revolving leader, equipped with a hammer and an earth auger, can rotate 90 degrees in either direction. This feature facilitates easy positioning of the tools at the center of the pile to be driven.
Operator-Focused Design: The operator’s room is well-insulated, featuring five wide windshields that ensure a bright and quiet working environment, minimizing operator fatigue during long hours of operation.
User-Friendly Operation: Hydraulic actuated control levers make operation easy. A single control lever manages high/low winch speeds and winding-stop-rewinding actions, streamlining the operation process.
Minimal Maintenance Requirements: The rig adopts floating ring seals and sealed bearings, reducing daily maintenance needs. The grease-bath type swing pinion gear extends service intervals, contributing to a hassle-free maintenance experience.
Fuel Efficiency: Powered by a direct fuel injection diesel engine with variable displacement plunger pumps, the DHP85-2 ensures economical operation through low fuel consumption.
Efficient Transport and Reassembly: The basic leader, connected with back stay cylinders, can be conveniently stored at the front of the machine for transportation. This design minimizes reassembly time, making transportation and reassembly at the job site easy.
Safety Features: Equipped with an inclinometer and posture alarm, the rig prioritizes safe operations. Additionally, a load indicator eliminates any slack in the earth auger drive suspension rope, ensuring a secure working environment.
