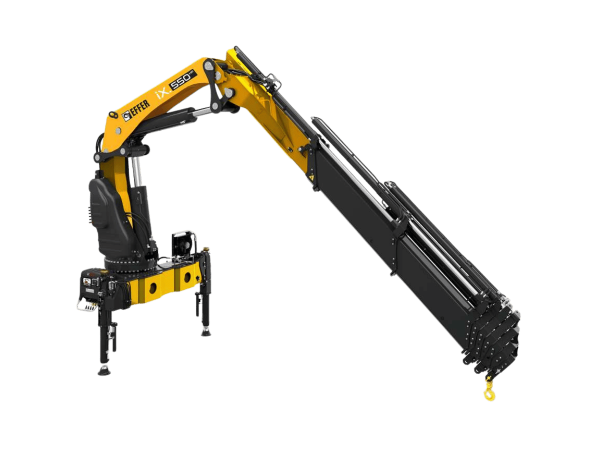

Effer iX.550 HP

The Effer iX.550 HP belongs to the latest generation of Effer iX series loader cranes, a range designed to combine high lifting performance with advanced digital control technology. The crane is classified in the 51 tonne-metre lifting class, positioning it among the larger articulated truck-mounted cranes used for demanding lifting applications such as construction material handling, equipment installation, infrastructure work, and industrial logistics.

A key feature of the crane is the SPACEevo control system, Effer’s advanced electronic control platform designed to manage crane stability, load monitoring, and hydraulic performance. The system integrates sensors and electronic controls to continuously monitor operating conditions and optimize lifting performance. It also assists the operator by automatically adapting crane movements to ensure stability and safety during lifting operations.

The iX.550 HP is available in several boom configurations including E-6, E-7, and E-8 versions, referring to the number of hydraulic boom extensions installed on the crane. These extensions determine the maximum hydraulic outreach and working envelope of the machine. In the longest configurations, the crane can reach more than 17 m of hydraulic outreach, allowing loads to be handled at considerable distances from the truck.

For applications requiring additional reach or height, the crane can be equipped with an optional JIB 150X-6 fly-jib attachment. This articulated jib significantly increases the crane’s working range and allows lifting operations in confined or elevated locations where the main boom alone may not provide sufficient reach.

The hydraulic system of the crane is designed with a variable displacement pump, which adjusts hydraulic flow according to the lifting demand. This technology improves hydraulic efficiency by delivering higher oil flow when required while reducing energy consumption during lighter operations. As a result, the system provides both improved lifting performance and reduced fuel consumption, which is particularly beneficial for cranes operating on truck-mounted platforms where engine efficiency is important.

Another notable feature of the iX.550 HP is the use of nano-based protective coating technology, known as Effer’s nDurance coating system. This coating helps protect the crane’s structural components from corrosion, rust, and environmental exposure. By preventing surface degradation, the technology helps maintain the crane’s structural integrity, visual appearance, and long-term residual value.

Like other modern loader cranes produced for the global market, the iX.550 HP is CE certified, confirming that it complies with European safety, environmental, and operational standards. This certification ensures that the crane meets strict requirements for structural safety, load monitoring, and operator protection.

Overall, the Effer iX.550 HP represents a modern heavy-duty truck-mounted crane that combines strong lifting capability in the 51 tonne-metre class with intelligent electronic control systems and efficient hydraulic technology. Its combination of long outreach, optional jib extensions, advanced stability monitoring, and durable protective coating makes it well suited for demanding lifting operations across construction, infrastructure, and industrial sectors.
