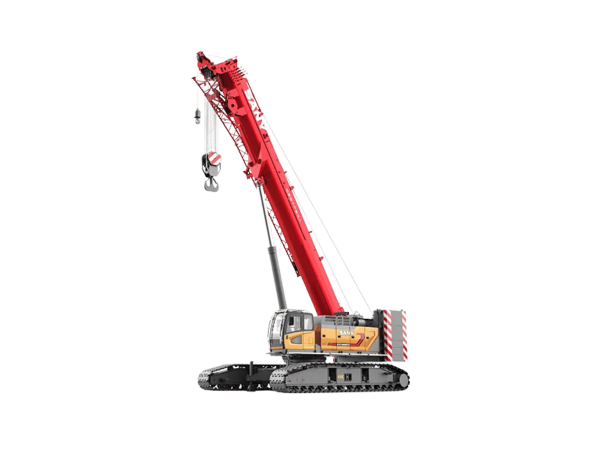

Sany STB1600T6

The SANY STB1600T6 is a robust and high-capacity telescopic crawler crane designed for demanding lifting tasks across a wide range of terrains and environments. With a maximum lifting capacity of 160 metric tons, the STB1600T6 is built for power, efficiency, and versatility, combining the benefits of a telescopic boom system with the superior stability of a crawler undercarriage.

The crane features a six-section full-power telescopic boom made of high-tensile steel, capable of extending from 13.2 meters to 60 meters. This long reach is complemented by an optional 18-meter bi-fold jib, which boosts the maximum lifting height to an impressive 78 meters. The telescopic system is hydraulically operated and synchronized for smooth extension and retraction, offering rapid configuration changes to meet various jobsite needs. The boom profile is optimally designed for both torsional resistance and reduced weight, enhancing lifting performance at extended radii.

Mounted on a crawler chassis, the STB1600T6 offers excellent off-road mobility and low ground bearing pressure, making it especially well-suited for projects on soft or uneven terrain where traditional wheeled cranes would struggle. The undercarriage features extendable and retractable tracks, allowing the crane to operate in both narrow configurations for transport and wide configurations for maximum stability during lifting operations. Track width can extend up to 6 meters, and travel speed reaches up to 1.4 km/h, which is adequate for positioning the crane on site.

Powering the machine is a high-output diesel engine compliant with China’s non-road emission standards. The engine drives a variable displacement hydraulic system that ensures responsive control over all crane functions, including boom operation, hoisting, slewing, and travel. The STB1600T6 is equipped with dual winches capable of line speeds up to 130 meters per minute, with large capacity rope drums to accommodate extended lift heights. The swing system provides 360° continuous rotation with precise control and automatic slewing brake for secure load handling.

The operator’s cab is ergonomically designed for comfort and visibility, featuring a wide viewing range, fully adjustable seat, climate control, and a touchscreen control interface. The control system integrates a Load Moment Indicator (LMI) and advanced diagnostics to ensure safety and efficiency during operation. Operational parameters such as boom angle, lifting load, and working radius are continuously monitored and displayed in real-time.

The crane’s counterweight system is modular and removable for ease of transport. A total counterweight of 58 metric tons (including base and turntable counterweights) allows the STB1600T6 to maintain stability during heavy lifts. The modular counterweights are hydraulically installed and can be quickly set up or removed on site.

With its combination of strong lifting capacity, exceptional reach, and crawler mobility, the SANY STB1600T6 is ideal for infrastructure projects, wind turbine installation, petrochemical construction, and other large-scale operations where mobility and setup speed are essential. Its telescopic boom design eliminates the need for complex lattice boom assembly, significantly reducing preparation time and increasing jobsite productivity.

In summary, the STB1600T6 stands out as a powerful and flexible solution in the telescopic crawler crane segment. It delivers the lifting performance of a large mobile crane, the off-road stability of a crawler crane, and the setup speed of a telescopic system—all in a single machine tailored for the modern jobsite.
