Comansa 21LC750

The 21LC750 crane is a model designed fundamentally for major industrial, energy, mining and PPVC construction projects. Since its launch, it has become one of Comansa’s top models’ thanks to its productivity, easy assembly and modularity.

It was the first COMANSA model to do away with the cat-head, a design that was also used for the 21LC660 and the cranes in the 1600 Series, drastically speeding up the assembly and dismantling processes.

All the hoist motors available for this model include the Effi-Plus system, which enables very high speeds, especially with light loads, and significantly improves the crane’s productivity when working at great heights. The two optional motors for the 21LC750 have a hoist cable capacity of 720 and 1,570 metres, respectively, allowing this crane to work at hook heights of up to 785 metres.

The crane has a maximum reach of 80 metres and comes in three versions with a maximum load of 25, 37.5 or 50 tonnes.

Additional Information


Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

thumbnail of 21LC750-25_spec_mt_en_vDS184303
Metric, EN (25 ton)
thumbnail of 21LC750-25_spec_mt_en_v3220-10348
Metric, EN (25 ton)
thumbnail of 21LC750-37.5_spec_mt_en_vDS184304
Metric, EN (37.5 ton)
thumbnail of 21LC750-37.5_spec_mt_en_v3220-10349
Metric, EN (37.5 ton)

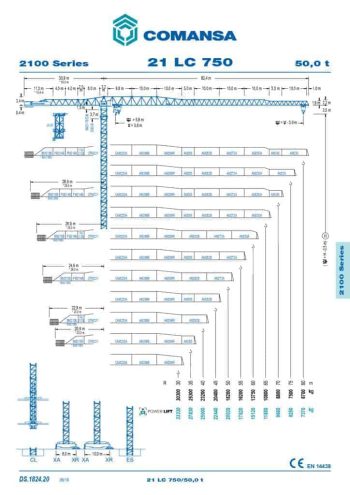

thumbnail of 21LC750-50_spec_mt_en_vDS180402
Metric, EN (50 ton)

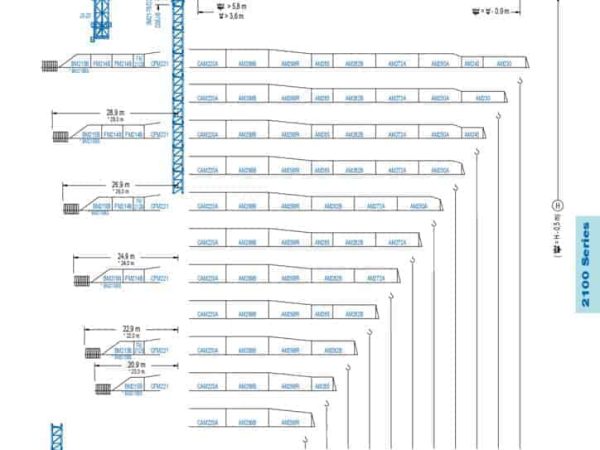

thumbnail of 21LC750-50_spec_mt_en_vDS182420
Metric, EN (50 ton)
