Comansa 5LC5010

The 5LC5010has a maximum reach of 50 metres, the largest in Comansa ’s LC500 Series. Its minimum radius is 20 metres, and both reaches have sections every 2.5 metres. Like the rest of the models in the series, it comes in5-tonne tonne versions with a maximum jib-end load of 1,000 kg, or 1,100 kg if the standard equipped PowerLift system is activated.

With 1.2-metre-wide tower sections, this model can reach free-standing heights of around 50 metres; using transition sections to larger sections the crane can reach more than 100 metres in height without using ties.

Categories: ,

Additional Information

Downloads

Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

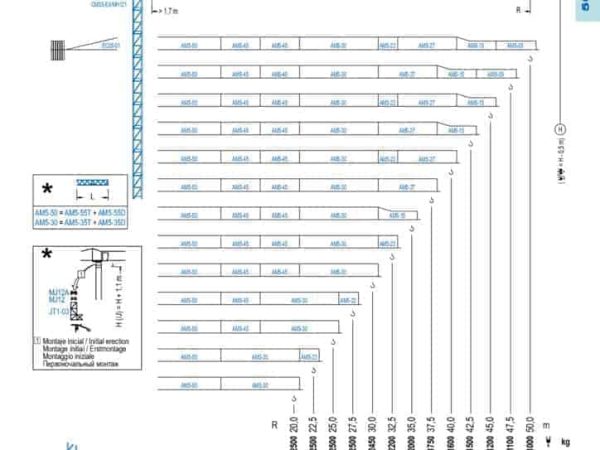

thumbnail of 5LC5010-5_spec_mt_en_vDS182308
Metric, EN (5 ton)
thumbnail of 5LC5010-5_spec_mt_en_vDS130708
Metric, EN (5 ton)
thumbnail of 5LC5010-4_spec_mt_en_vDS182307
Metric, EN (4 ton)
thumbnail of 5LC5010-4_spec_mt_en_vDS130707
Metric, EN (4 ton)
