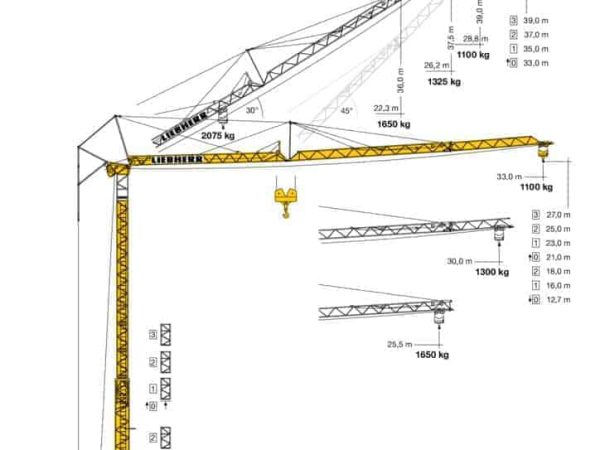

Liebherr 34 K Load Chart PDF + Specifications
Complete tower sections can be installed on the 34 K using the fast climbing equipment. This allows the hook height of the 34 K to be adjusted easily to the site situation.
Download Load Chart Here
Available Downloads:
*Crane Specifications, Load Charts, and Crane Manuals are for reference only.
Contact the crane manufacturer for manuals to operate the crane properly.
Key Features & Benefits
| Lifting capacity at max. radius | 1,100 kg |
|---|---|
| Max. radius | 33.00 m |
| Standard | EN 14439 |
| Max. lifting capacity | 4,000 kg |
| Lines | 2/4 |
| Max. hook height | 26.00 m |
| Luffed jib position | 30 ° |
| Jib position to avoid obstacles | 45 ° |
| Slewing radius | 2.50 m |
| Hoist gear | 11 kW FU |
| Slewing gear | 2,2 kW FU |
| Trolley travel gear | 1,3 kW / 2,3 kW |
