Liebherr 65 K.1

,

On the 65 K.1 all loads are moved in pure SPEED2LIFT 2-line operation. No re-reeving and no time loss for maximum load handling on site.

Additional Information

Downloads

Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

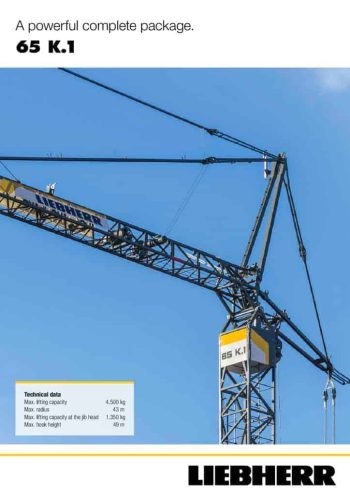

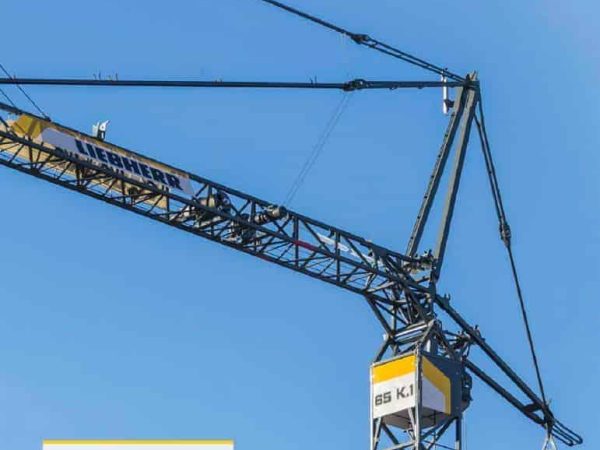

thumbnail of 65K.1_brochure_en
Brochure, EN
thumbnail of 65K.1_spec_mt_en
Metric, EN

Product Description

Lifting capacity at max. radius 1,350 kg
Max. radius 43.00 m
Standard EN 14439
Max. lifting capacity 4,500 kg
Lines 2
Max. hook height 34.60 m
Luffed jib position 30 °
Jib position to avoid obstacles 45 °
Slewing radius 2.55 m
Hoist gear 11 kW FU
Slewing gear 4,0 kW FU
Trolley travel gear 3,0 kW FU
