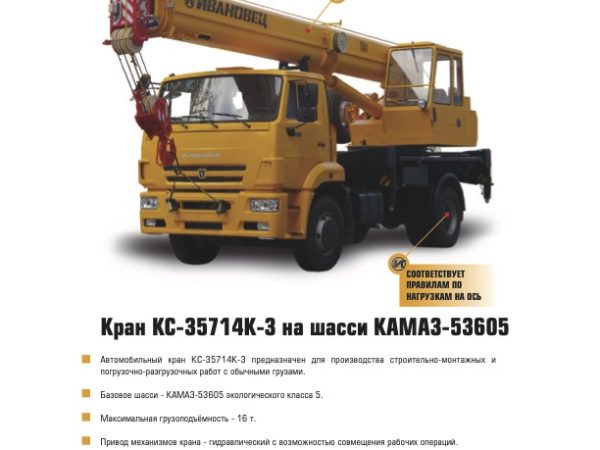

Ivanovets KC-35714K-3

Truck-Mounted Crane

The Ivanovets KC-35714K-3 is a robust 16-ton truck-mounted crane, adept at performing a range of construction, assembly, and loading operations. Mounted on a KAMAZ-53605 chassis, this model features a three-section telescopic boom that extends up to 18 meters, equipped with a 7-meter jib for additional reach. It is designed to handle both regular and potentially hazardous materials, making it a versatile choice for diverse industrial applications.

Downloads

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models

Product Description

The KC-35714K-3 offers a maximum lifting capacity of 16 tons, suitable for handling a variety of load types including hazardous materials, though specific capacities for such materials may vary.

Chassis and Mobility

Chassis: Built on a KAMAZ-53605 chassis with a 4×2 wheel configuration, it meets Euro 5 emission standards. This chassis supports the crane’s operations in a variety of environments, ensuring stability and robust performance.
Engine: Powered by a Cummins ISB6.7E5 300 engine, providing 215 kW (292 horsepower), which ensures ample power for both lifting operations and vehicle movement.

Boom and Jib Configuration

Boom Length: The boom extends from 8.0 meters to 18.0 meters, providing substantial reach and versatility for various operational needs.
Jib Option: A 7.0-meter jib enhances the crane’s functionality, extending the maximum lifting height to 25 meters and broadening its capabilities in lifting operations.

Safety and Control Systems

Lifting Limiter: Equipped with a microprocessor-controlled lifting limiter that includes a digital display and a built-in data recorder. This system enhances operational safety by monitoring and adjusting load and operation parameters to ensure safe and stable lifting.

Operational Specifications

Lifting Speeds: Offers a range of lifting speeds from 0.2 to 7.5 meters per minute, with a maximum speed for hook lifting at 35.0 meters per minute.
Slewing Speed: Provides a slewing rate of 0.3 to 2.4 rotations per minute, facilitating smooth and controlled load manipulation.
Travel Speed: Capable of reaching speeds up to 50 km/h, which aids in quick transitions between job sites.

Physical Dimensions and Weight

Dimensions: Measures 10,000 mm in length, 2,550 mm in width, and 3,990 mm in height.
Weight: The equipped mass with the main boom is 17.02 tons, which slightly increases to 17.32 tons with the jib attached, ensuring stability during operations.

Overall, the Ivanovets KC-35714K-3 crane is engineered for reliability and versatility, meeting the rigorous demands of modern construction environments with its enhanced lifting capabilities and advanced safety features.
