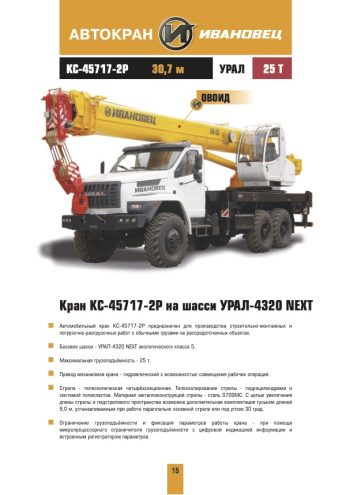

Ivanovets KC-45717-2P

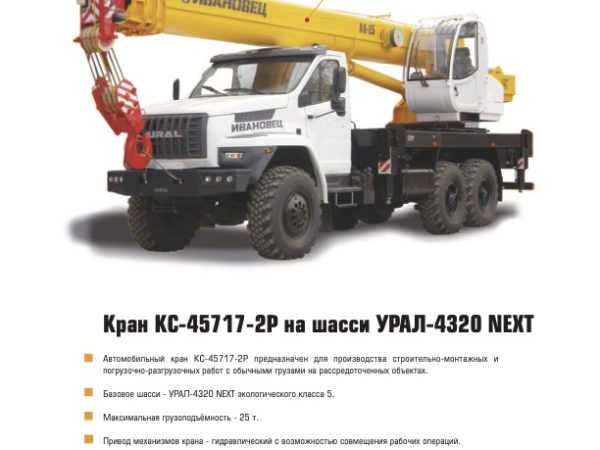

The Ivanovets KC-45717-2P is designed to perform construction, installation, and loading tasks across dispersed sites. It employs a hydraulic drive for crane mechanisms, allowing simultaneous operation executions, which enhances its operational efficiency. The crane’s design incorporates a multi-section telescopic boom made from high-strength S700MC steel, which can be extended with a 9-meter jib for increased reach and operational versatility.

Chassis and Mobility

The crane is mounted on a URAL-4320 NEXT base chassis, with a 6×6 wheel formula that provides robust mobility and stability across varied terrains. The engine model YAMZ-53623-10 delivers a power output of 201 kW (273 hp), facilitating efficient travel and operation. The crane can travel at speeds up to 60 km/h, making it quick to reposition on job sites.

Lifting Specifications

The KC-45717-2P features a variable length telescopic boom that can extend from 9.9 meters to 30.7 meters. With the addition of a 9-meter jib, the maximum lifting height reaches up to 40.3 meters. The crane supports a maximum load capacity of 25 tons and achieves a load moment of 85 tm. The lifting speed varies between 0.2 m/min and 7.4 m/min, with a maximum hook lift speed of 40 m/min. Slewing speed ranges from 0.3 to 1.9 revolutions per minute, providing precise maneuverability.

Safety and Operational Control

Operational parameters and load limits are monitored and controlled by a microprocessor-based load limiter with digital display, which also includes a built-in operation recorder. This system ensures safety and compliance with operational standards by preventing overloading and guiding the crane operator through safe lifting practices.

Dimensions and Transportability

In its transport configuration, the crane measures 11970 mm in length, 2550 mm in width, and 3800 mm in height. It has a road-load distribution of 6.25 tons on the front wheels and 16.00 tons on the rear trolley, optimized for safe and legal road travel. The equipped mass of the crane is approximately 22.25 tons without the jib, and 22.75 tons with it, highlighting its heavy-duty capability.

Overall, the Ivanovets KC-45717-2P crane combines robust construction, advanced safety features, and high operational flexibility, making it suitable for a wide range of lifting tasks in various environments.
