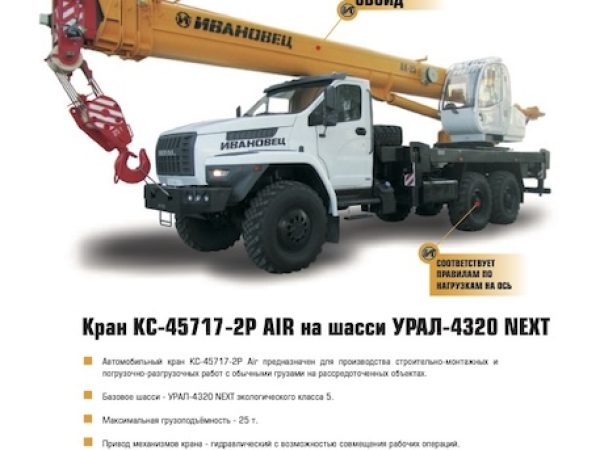

Ivanovets KC-45717-2P AIR

Truck-Mounted Crane

The Ivanovets KC-45717-2P AIR is an advanced version of the traditional mobile crane, configured with a powerful URAL-4320 NEXT chassis. This model is designed for efficient handling of construction and loading tasks at diverse sites, boasting a maximum lifting capacity of 25 tons and a hydraulic drive for seamless operation integration. It features a robust four-section telescopic boom, extendable with a 9-meter jib, and advanced safety and performance monitoring systems.

Downloads

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models

Product Description

The KC-45717-2P AIR crane is tailored for diverse construction and loading applications, ensuring efficient operation through its hydraulic system which allows combined operation tasks. It stands out with its high-strength S700MC steel four-section telescopic boom, which extends up to 30.7 meters, and can be complemented by a 9-meter jib for additional reach.

Chassis and Engine

Mounted on the URAL-4320 NEXT base chassis with a 6×6 wheel formula, this crane is designed for optimal mobility and stability. The YAMZ-53623-10 engine powers this crane with 201 kW (273 hp), adhering to Euro-5 emission standards. This engine setup ensures the crane can travel up to speeds of 60 km/h, making it swift to reposition across job sites.

Lifting Capacity and Operations

With a main boom that extends from 9.9 meters to 30.7 meters and an additional 9-meter jib, the crane can achieve a maximum lifting height of 40.3 meters. It supports a load capacity of 25 tons with a load moment of 85 tm. Operational efficiency is maintained with a variable lifting speed ranging from 0.2 m/min to 7.4 m/min, and a maximum hook lifting speed of 40 m/min. The slewing speed is adjustable from 0.3 to 1.9 rpm, facilitating precise load handling.

Safety Features

The KC-45717-2P AIR incorporates a microprocessor-based load limiter with a digital display for real-time monitoring and operational safety, alongside a built-in data recorder for operational parameters. This system helps in maintaining safety standards by preventing overloading and operational errors.

Transportation and Dimensions

In its transport mode, the crane measures 11970 mm in length, 2550 mm in width, and 3786 mm in height. It has a configured mass of 21.35 tons, distributed efficiently across the wheels to meet road safety standards. The transport dimensions and weight make it compliant with general road transport regulations for ease of mobility between sites.

Overall, the Ivanovets KC-45717-2P AIR crane combines high-performance lifting capabilities with advanced safety systems and robust mobility features, making it an ideal choice for a wide array of industrial and construction applications.
