Ivanovets KC-45717A-1P

Truck-Mounted Crane

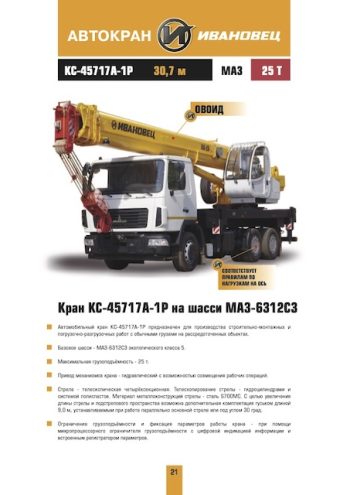

The Ivanovets KC-45717A-1P is a powerful mobile crane equipped with a four-section telescopic boom and mounted on a MAZ-6312C3 chassis. This model is engineered for extensive use in construction and loading operations with a maximum lifting capacity of 25 tons. It features a 9-meter jib extension, a hydraulic drive system for smooth operation, and a design that complies with Euro-5 emission standards, making it an environmentally conscious choice for modern projects.

Downloads

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models

Product Description

The KC-45717A-1P crane is specifically designed for handling a wide range of construction and loading tasks. Its advanced hydraulic system allows for simultaneous operation combinations, increasing efficiency and reducing operation time on-site. The crane’s structure includes a high-performance telescopic boom, which can be extended with a 9-meter jib for increased versatility.

Chassis and Engine

The crane is built on a robust MAZ-6312C3 chassis with a 6×4 wheel formula, providing excellent stability and mobility across varied job sites. It is powered by a YAMZ-53623 engine that delivers 200.7 kW (273 hp), ensuring adequate power for handling heavy loads. This configuration allows the crane to travel at speeds up to 60 km/h, facilitating quick relocation across different areas of a project.

Lifting Capabilities

The KC-45717A-1P features a telescopic boom with a length ranging from 9.9 meters to a maximum of 30.7 meters. When combined with the 9-meter jib, it achieves a maximum lifting height of 39.3 meters. The crane’s load capacity reaches up to 25 tons, supported by a load moment of 85 tm. It offers a lifting speed range of 0.2 to 7.4 m/min, with a peak hook lifting speed of 40 m/min. The crane’s rotation speed ranges from 0.3 to 1.9 rpm, enabling precise maneuvering of loads.

Safety and Operational Control

Safety features include a microprocessor-based load limiting system with digital display and integrated parameter recording. This ensures the crane operates within safe lifting parameters and provides crucial data for monitoring and improving future operations.

Dimensions and Transportability

In its transportation mode, the crane measures 11945 mm in length, 2550 mm in width, and 3950 mm in height. It has an equipped mass of 23.32 tons with the main boom and increases slightly when the jib is included. The load distribution is carefully calculated to meet road safety standards, ensuring it can be transported legally on public roads.

Overall, the Ivanovets KC-45717A-1P combines advanced lifting technology with robust construction and environmental compliance, making it a suitable choice for demanding construction and industrial applications.
