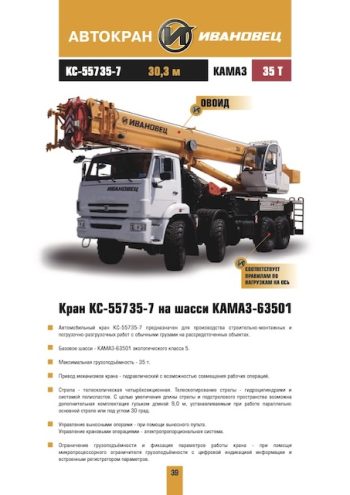

Ivanovets KC-55735-7

The KC-55735-7 crane is engineered for heavy-duty operations requiring high lifting capacity and precision. Its design incorporates advanced hydraulic mechanisms allowing for simultaneous multiple operations, improving overall efficiency and performance on the job site.

Chassis and Engine

Built on the durable KAMAZ-63501 chassis, this crane offers excellent stability and maneuverability due to its 8×8 wheel configuration. It is powered by a KAMAZ 740.715-320 engine producing 235 kW (320 hp), which provides significant power for demanding tasks. This setup enables the crane to achieve travel speeds up to 60 km/h, facilitating rapid relocation across various terrains.

Lifting Capabilities

With a maximum load capacity of 35 tons and a load moment of 105 tm, the KC-55735-7 is suited for lifting heavy loads. The telescopic boom can reach from 10.1 meters to 30.3 meters, and with the additional jib, the maximum lifting height is 39.0 meters. The crane features a lifting speed range of 0.2 to 5.1 m/min and a maximum hook speed of 38 m/min, complemented by a slewing speed of 0.3 to 1.0 rpm for precise load manipulation.

Safety and Operational Control

The crane includes a microprocessor-based load limiting system with digital display and integrated operational parameter recording, ensuring safety and efficiency. It also features electro-proportional crane operation controls and remote-controlled outriggers for enhanced operational flexibility and safety.

Dimensions and Transportability

In its transport configuration, the crane measures 11800 mm in length, 2550 mm in width, and 4000 mm in height. The equipped mass of the crane with the main boom is 26.13 tons, ensuring it can be legally transported on public roads within axle load regulations.

Overall, the Ivanovets KC-55735-7 combines exceptional lifting power with advanced safety features and robust construction, making it a valuable asset for large-scale industrial and construction projects requiring significant lifting capabilities.
