Ivanovets KC-65740-6

Truck-Mounted Crane

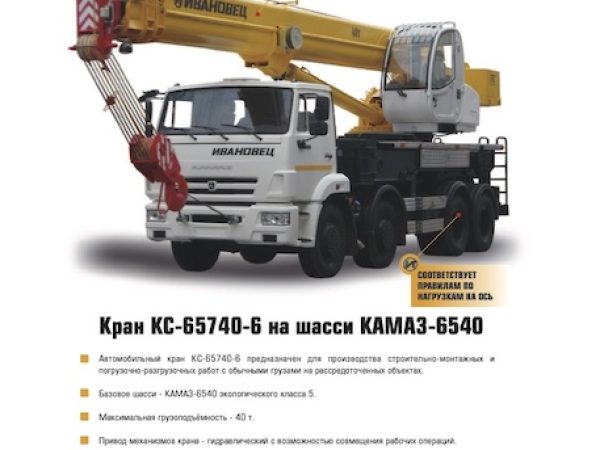

The Ivanovets KC-65740-6 is a robust mobile crane designed for extensive construction and loading operations. Mounted on a KAMAZ-6540 chassis with an 8×4 wheel formula, it features a four-section telescopic boom that extends up to 30.3 meters. This model boasts a high lifting capacity of 40 tons and is equipped with a 9-meter jib for increased reach, making it well-suited for handling heavy loads across various work environments.

Downloads

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models

Product Description

The KC-65740-6 crane is tailored for high-efficiency lifting tasks, capable of handling both standard and heavy loads with precision and ease. It incorporates advanced hydraulic mechanisms for simultaneous multiple operations, significantly boosting productivity and operational flexibility.

Chassis and Engine

This crane operates on a KAMAZ-6540 chassis, known for its stability and durability, enhanced by its 8×4 wheel configuration. It is powered by a Cummins ISB6.7E5 300 engine, delivering 215 kW (292 hp), which provides robust performance necessary for heavy lifting and rapid site-to-site relocations with a maximum speed of 60 km/h.

Lifting Capabilities

With a maximum load capacity of 40 tons and a load moment of 120 tm, the KC-65740-6 is among the more capable models in its class. The crane’s telescopic boom can reach from 10.1 meters to 30.3 meters, supplemented by a 9-meter jib that extends the maximum lifting height to 39.0 meters. The crane also features precise control mechanisms, including an electro-proportional system for crane operations and remote-controlled outriggers, enhancing its safety and efficiency.

Safety and Operational Control

Safety features include a microprocessor-based load limiting system with digital display and integrated recording of operational parameters. This ensures high safety standards are maintained during operation, preventing overloading and enhancing operational integrity.

Dimensions and Transportability

In transport mode, the KC-65740-6 measures 11800 mm in length, 2550 mm in width, and 4000 mm in height, with an equipped mass of 26.63 tons (27.13 tons with the jib). It is designed to comply with road transport regulations, ensuring it can be transported legally and safely on public roads.

Overall, the Ivanovets KC-65740-6 crane combines significant lifting power with advanced control features and robust construction, making it an indispensable tool for large-scale industrial and construction projects requiring substantial lifting capabilities.
