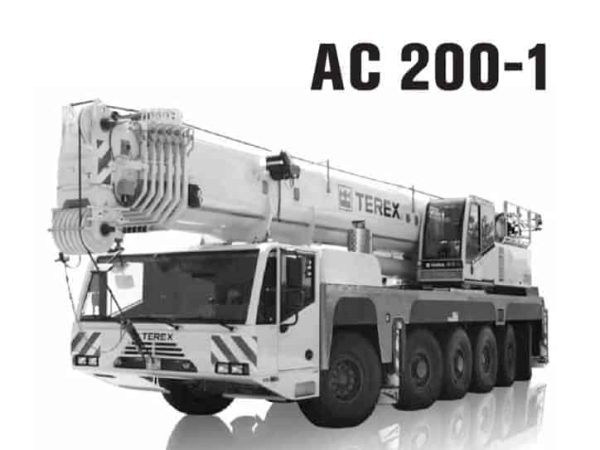

Demag AC200-1

Mobile Crane

The Terex-Demag AC 200-1 is a crane offering a max carrying capacity of 200t at a 3m reach, with a 68m standard boom, and boasts a load torque of 6000 kNm. It’s powered by an undercarriage engine of 380kW and a superstructure engine of 170kW. This model is known for its compactness and agility, enhancing maneuverability with its advanced steering system adaptable for both on and off-road conditions .

Downloads

Available Downloads:

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models

Product Description

The Demag AC200-1 is a highly advanced all-terrain crane, distinguished by its compact size for a 200-ton capacity crane. This model features a short carrier length of 12.6m and a narrow width of 2.75m, making it the shortest 200-tonner on 5 axles. It boasts a 7-section, 68m boom equipped with the Unimec telescoping and pinning system, allowing for a combined boom-and-jib length of up to 100m when the 33m boom extension is fitted. The crane’s maneuverability and driving stability are enhanced by speed-dependent rear axle steering. It also incorporates the innovative Demag IC-1 crane control system with a touchscreen interface for ease of operation. The carrier benefits from a modified axle arrangement, available as an option, to suit various operational needs.

Key specifications include:

Engine: 390 kW MTU (Mercedes) with a torque of 2400 Nm, complying with EURO MOT 3a, TIER 3, and CARB standards.
Fuel tank capacity: 500 liters for both the carrier and crane operations.
Transmission: ZF AS-Tronic with an automated gearbox featuring 16 forward speeds and 2 reverse speeds.
Suspension: Hydropneumatic with axle load compensation, providing manual or automatic leveling.
Crane Telescopic boom: 12.4m – 67.8m with a single cylinder telescoping system.
Counterweight: 42.6t, expandable to max. 68.5t, with an automatic rigging system.

The AC200-1 combines high lifting capacity with compact dimensions, enabling it to perform in spaces where larger cranes cannot. Its advanced technology and engineering make it a versatile choice for a wide range of lifting tasks .
