Fuwa FWX225 Harbor Load Chart PDF + Specifications

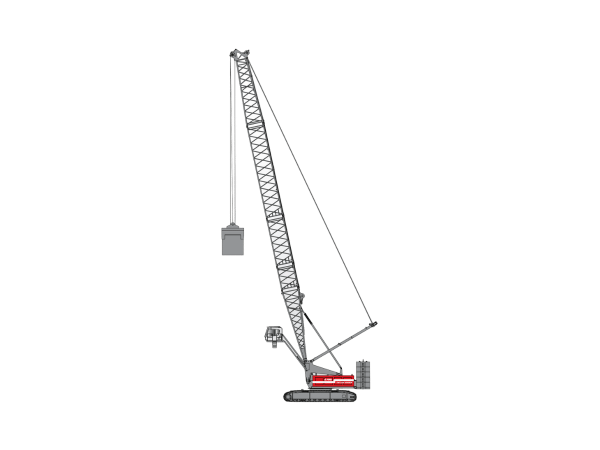

The Fuwa FWX225 is a high-capacity crawler crane engineered for demanding lifting operations, offering a maximum lifting capacity of 225 tonnes and a peak load moment of 2250 tonne-meters at a 5-meter radius. This crane is built to meet the rigorous needs of large-scale projects, including infrastructure development and industrial construction. The FWX225 features a main boom that can extend from 18 to 85 meters, and it can be configured with both fixed and luffing jibs for increased flexibility. With a maximum combined boom and luffing jib reach of 106 meters, the FWX225 is equipped to handle complex lifts at various heights and distances.

The crane is powered by a robust 242 kW engine, providing the necessary torque and power for efficient operations. The FWX225 boasts multiple configuration options, including a fixed jib (12–36 meters) and a luffing jib setup that extends the boom to a maximum of 58.8 + 70 meters, allowing for customized solutions based on specific job requirements. The main and auxiliary winches offer lifting speeds up to 126 m/min, while the boom hoist operates at a speed of 28 m/min, ensuring swift and precise movements during lifting operations.

The FWX225’s operating features include a swing speed of up to 1.5 rpm, a travel speed of up to 1.2 km/h, and a gradeability of 30%, making it maneuverable on challenging terrain. It has a single line pull capacity of 13.5 tonnes, providing substantial power for heavy loads. The crane’s total weight, including the 225t hook, is 210 tonnes, with a counterweight configuration comprising a total of 225 tonnes (distributed as 150, 80, 35, and 15 tonnes), which ensures optimal stability during operation.

For transport, the FWX225 is designed with dimensions of 12,600 mm (L) x 3,000 mm (W) x 3,290 mm (H), allowing for efficient transit between job sites. The crane’s structure and boom components are modular, facilitating easy assembly and disassembly, which helps reduce setup time and costs. The FWX225 is built with advanced safety features, including hydraulic limiters and monitoring systems that enhance operational security, ensuring reliable performance in various industrial environments.
