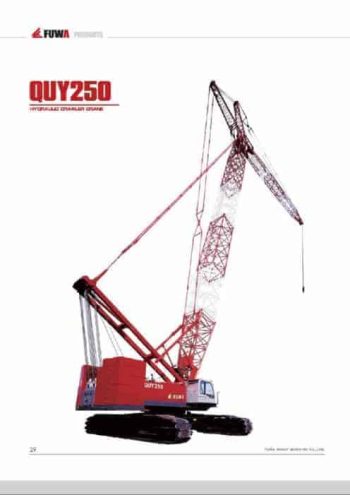

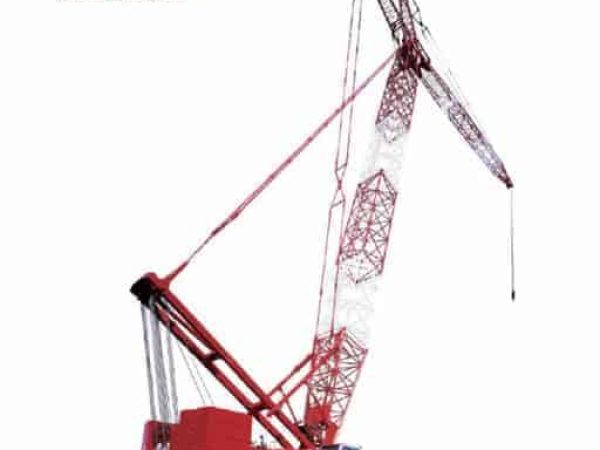

Fuwa QUY250
The Fuwa QUY250 is a 260-ton hydraulic crawler crane equipped with a main boom extending up to 72.2 meters and a maximum luffing jib combination of 60.2+61 meters. Powered by a 242 kW engine, it offers smooth operation with efficient winch speeds, a swing speed of 1.7 rpm, and excellent mobility for heavy lifting tasks across various industries.
Downloads
*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.
Related Models
Product Description
The Fuwa QUY250 is a robust 260-ton capacity hydraulic crawler crane designed for heavy-duty lifting operations, built in accordance with European CE and North American standards. Its main boom ranges from 15.2 to 72.2 meters, providing the versatility required for a wide range of applications. The crane also features a fly jib that extends from 18 to 36 meters, enabling greater reach and operational flexibility. For extended lifting height and complex operations, the maximum boom and luffing jib combination can reach 60.2+61 meters.
The QUY250’s heavy and light boom configurations range between 75.8 and 90.8 meters, offering strength and adaptability for different lifting requirements. It operates within a main boom angle of 30° to 80°, allowing it to handle tasks in confined or challenging job sites. The crane also comes with optional hook blocks weighing 250, 150, 80, 35, or 15 tons to handle various load capacities efficiently.
The crane’s winch systems are powerful, with both the main and auxiliary winches featuring a rope diameter of 28 mm and a maximum line speed of 117 m/min. The boom hoist winch, with a 22 mm rope diameter, operates at 56 m/min, ensuring smooth and efficient handling of loads. It offers a swing speed of 0 to 1.7 rpm and a travel speed of 0.8 to 1.2 km/h, providing balanced movement on the job site. The crane’s high gradeability of 30% ensures it can handle rough terrain and inclines with ease.
The QUY250 is powered by a 242 kW engine, operating at 2100 rpm, which delivers reliable performance and fuel efficiency. The crane’s overall dimensions are 12,310 × 3,280 × 3,552 mm, and it has a total operating weight of 225 tons, with a ground bearing pressure of 0.114 MPa, ensuring stability during operation. Additionally, the crane comes equipped with a counterweight of 88.5 tons, contributing to its stability and lifting power.
With advanced safety features and easy maintenance, the Fuwa QUY250 is well-suited for large construction, energy, and infrastructure projects that require high lifting capacities, long reach, and reliable performance.
