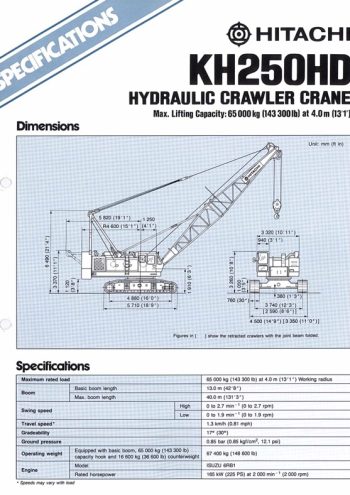

Hitachi KH250HD

The Hitachi KH250HD is a robust crawler crane with a maximum lifting capacity of 65 tons, optimized for construction and heavy-lifting tasks. Its basic boom measures 13 meters, which can be extended to a maximum length of 40 meters, providing significant operational reach and flexibility. The crane’s boom system also includes smooth lifting and lowering speeds of 40 m/min, ensuring precision control in various lifting scenarios.

The main and auxiliary winch systems are equipped with 26 mm wire ropes capable of operating at speeds of 60 m/min (high) or 30 m/min (low), while the third winch utilizes a 20 mm wire rope with lifting and lowering speeds of 40 m/min. This comprehensive winch setup is designed for effective load management across different tasks.

For operational maneuverability, the KH250HD offers a swing speed of 2.7 rpm (high) and 1.9 rpm (low), ensuring smooth crane rotation during operations. Its propel speed of 1.3 km/h allows for stable movement on job sites. Furthermore, the crane’s 30% gradient ability enables reliable performance on uneven or sloped terrains, making it suitable for a wide range of environments.

The machine has an operating weight of 67.4 tons, supported by a ground pressure of 0.85 kg/cm², ensuring stable operation even under load. It is powered by an Isuzu 6RB1 diesel engine delivering 225 PS at 2,000 rpm, offering both power and fuel efficiency for prolonged operations.

This crane is ideal for medium-heavy lifting tasks in various industries due to its well-rounded capabilities, including efficient winch systems, boom flexibility, and strong engine performance.
