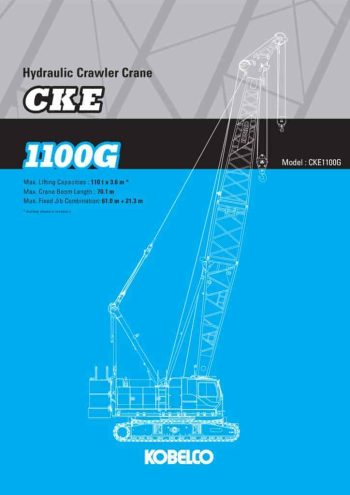

Kobelco CKE1100G
The Kobelco CKE1100G is a 110-ton capacity hydraulic crawler crane featuring a maximum boom length of 70.1 meters and maximum fixed jib combination of 61.0 + 21.3 meters. It is powered by a 213 kW HINO engine compliant with Stage IIIB/Tier 4 interim standards and offers advanced hydraulic systems for smooth, precise operation.
GET SPEC SHEET
*Crane Specifications, Load Charts, and Crane Manuals are for reference only.
Contact the crane manufacturer for manuals to operate the crane properly.

Product Description
The Kobelco CKE1100G is a high-performance 110-ton class hydraulic crawler crane designed to deliver strong lifting capabilities combined with exceptional reliability and advanced technology. Featuring a maximum rated lifting capacity of 110 tons at a 3.6-meter working radius, it comes with a telescopic boom that can extend up to 70.1 meters and offers jib configurations extending up to 21.3 meters, achieving versatile lifting solutions for diverse job sites.
Equipped with a robust HINO J08E-UV diesel engine producing 213 kW at 2,100 rpm, the crane meets NRMM (Europe) Stage IIIB and US EPA Interim Tier 4 emissions standards, ensuring both power and environmental compliance. Its hydraulic system employs four variable displacement piston pumps, delivering precise control across hoisting, swinging, and travel functions. The main winches provide a maximum line speed of 120 m/min with rated single-line pull of 108 kN, enabling efficient, stable operation even in demanding conditions.
The CKE1100G also includes advanced features such as self-removal devices for counterweight and crawler frames, reducing setup time and enhancing transportability. The upper structure is designed with serviceability in mind, incorporating noise-reduction measures and an ergonomic cab fitted with air conditioning, large visibility windows, and intuitive controls.
Its lower structure uses a wide crawler track system offering stable performance with excellent ground pressure distribution, making the crane capable of handling gradients up to 40%. The crane incorporates multiple safety measures, including load moment indicators and precise swing mechanisms powered by hydraulic motors through planetary reducers, offering smooth 360-degree rotation at speeds up to 3.2 rpm.
Designed to meet the needs of modern lifting projects, from heavy infrastructure to industrial installation, the Kobelco CKE1100G combines powerful lifting performance, operator-focused design, and efficient transport and assembly solutions, ensuring it remains a preferred choice in the 110-ton crawler segment.
