Kobelco CKE2500G

The Kobelco CKE2500G is a 250-ton hydraulic crawler crane equipped with a maximum boom length of 91.4 meters, luffing jib combination of 61 + 61 meters, and powered by a 271 kW HINO engine. This crane offers advanced hydraulics, precise control, and versatile boom and jib configurations suitable for heavy lifting in construction and industrial projects.

GET SPEC SHEET

somdn_product_page

*Crane Specifications, Load Charts, and Crane Manuals are for reference only.
Contact the crane manufacturer for manuals to operate the crane properly.

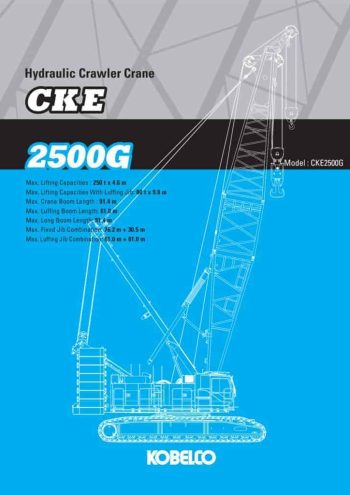

thumbnail of CKE2500G_spec_mt_en

Product Description

The Kobelco CKE2500G is a high-capacity crawler crane designed for challenging lifting tasks in large construction and industrial projects. With a maximum rated lifting capacity of 250 tons at 4.6 meters working radius, this crane delivers outstanding strength and reliability. It features a robust main boom that extends up to 91.4 meters and supports various configurations including a maximum fixed jib combination of 76.2 + 30.5 meters and a luffing jib combination of 61 + 61 meters, offering exceptional reach and flexibility.

The crane is powered by a HINO P11C-VC turbocharged diesel engine, producing 271 kW at 1850 rpm and complying with NRMM Stage IIIB and US EPA Interim Tier 4 emission standards. Its advanced hydraulic system, driven by four variable displacement piston pumps, ensures smooth, responsive control over hoisting, swinging, and traveling functions, with a maximum line pull of 233 kN and hoisting speeds up to 110 m/min.

The CKE2500G’s upper structure is engineered for low noise and easy maintenance access, while the cab is equipped with ergonomic controls, air conditioning, and full visibility windows for operator comfort and safety. The lower structure features a steel-welded carbody with hydraulically extendible crawler assemblies and sealed track rollers, providing excellent stability and durability. It also includes a self-removal device for counterweights and crawler frames, simplifying transport and assembly on site.

Operating with a 90.4-ton counterweight and an overall weight of approximately 220 tons, the CKE2500G maintains a low ground pressure of 112 kPa, allowing it to work on a variety of terrain conditions. Its combination of power, advanced technology, and adaptability makes it an ideal choice for heavy lifts in infrastructure, energy, and large-scale construction projects.
