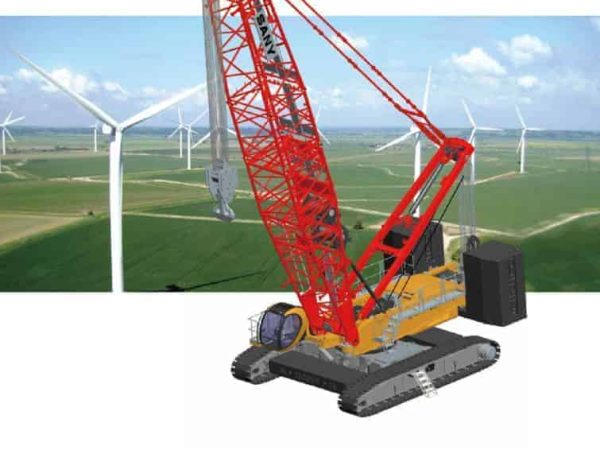

Sany SCC2600A

The Sany SCC2600A crawler crane is designed to handle demanding construction and industrial lifting tasks, with a maximum lifting capacity of 260 tons and a maximum rated lifting moment of 1470.4 t·m. Its boom length ranges from 20 to 86 meters, and it has a luffing angle of 30° to 85°, providing excellent flexibility for different lifting scenarios.

The crane offers multiple jib configurations for maximum adaptability. The longest main boom combined with a fixed jib can reach 62+42 meters, and when using the luffing jib, the total length can extend to 62+63 meters. The fixed jib features offset angles of 10° and 30°, while the luffing jib offers a luffing angle range of 65° to 88°, further enhancing its versatility on the job site.

In terms of operational speed, the SCC2600A is equipped with efficient winch systems. The boom winch has a line speed of 0 to 124 m/min, the main luffing winch operates at 0 to 108 m/min, and the auxiliary luffing winch can reach speeds of up to 144 m/min. This ensures smooth and fast handling of loads during operations. The crane has a slewing speed of 0 to 1.25 rpm, and its travel speed ranges from 0 to 1.2 km/h, or 0.53 km/h in double speed mode, providing reliable mobility.

Powered by a 242 kW engine with a rated speed of 2100 rpm, the SCC2600A delivers excellent performance in terms of power and efficiency. The crane has a maximum transport weight of 45 tons (including the boom and lifting winches) and a transport dimension of 13320 × 3000 × 3200 mm. With an average ground pressure of 0.14 MPa, this crane ensures stable operation on a variety of terrains, making it an ideal solution for complex lifting jobs in construction, infrastructure, and energy sectors.
