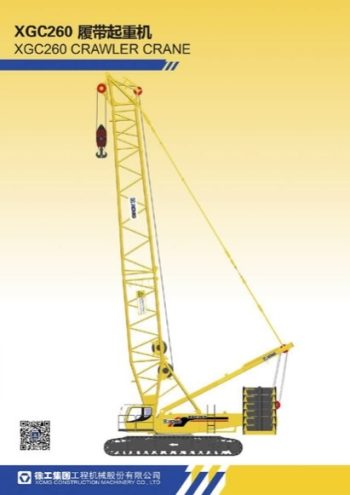

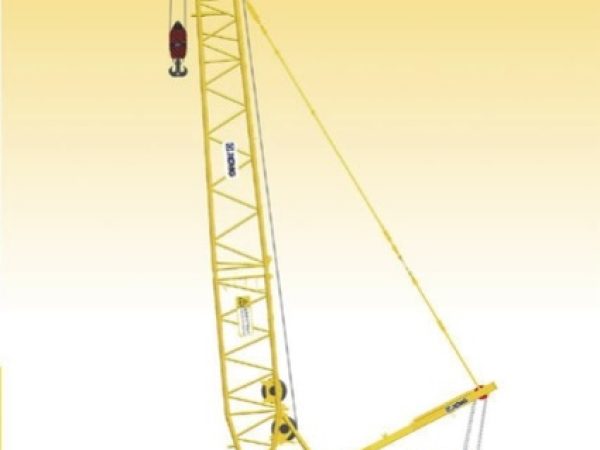

XCMG XGC260

Crawler Crane

XCMG XGC260 crawler crane is a new generation after its previous QUY260 model. It is a “star product” that integrates a number of world-first technologies and trends leading to technological changes in the industry. The technical level of this crawler crane is meant to meet international standards.

XGC260 integrated the world’s first jib function integration technology, graded load hoisting technology and easy transportation design. The crawler has been optimized to be lightweight, high capacity jib and a low CoG chassis design, making lifting performance for the crane to be stronger.

The R&D of this crane was based on lifting requirements for 6m to 6.5m diameter tunnel boring machines, covering the effectiveness in the hoisting requirement for the TBMs installation.

GET SPEC SHEET

*Crane Specifications, Load Charts, and Crane Manuals are for reference only.
Contact the crane manufacturer for manuals to operate the crane properly.

Product Description

The XCMG XGC260 is a robust and highly adaptable crawler crane with a maximum lifting capacity of 260 tons. It is engineered to meet the demands of various construction and industrial lifting tasks, providing flexibility through its multiple boom and jib configurations.

Lifting Capacity and Boom Configurations:

The XGC260 crane has a maximum lifting capacity of 260 tons, which can be utilized across different boom lengths. The main boom can be extended from 24 to 93 meters, while the light-duty boom extends from 67.5 to 105.5 meters, offering extensive reach for various operations. Additionally, the crane supports a luffing jib configuration that ranges from 24 to 66 meters, and a fixed jib from 9 to 30 meters, enabling it to handle complex lifting tasks.

Performance Metrics:

The crane is equipped with a powerful engine that delivers a maximum power output of 247 kW at 1900 rpm. This allows the crane to achieve a maximum hoisting speed of 135 meters per minute and a slewing speed of 1.1 rpm, ensuring efficient and smooth operations. The crane’s maximum travel speed is 1.2 km/h, and it has a gradeability of 30%, making it suitable for rough terrains.

Structural and Safety Features:

The XGC260 is designed for stability and safety, featuring a mean ground pressure of 0.116 MPa, which ensures minimal ground disturbance. The crane is also equipped with advanced control systems for precise operation, and its modular components allow for easy transport and assembly. The car-body counterweight can be configured up to 100 tons, providing additional stability during heavy lifts.

Transport and Assembly:

For ease of transport, the XGC260’s components are designed to be compact, with the maximum dimension of a single unit in transport state being 13.2 x 3.0 x 3.2 meters. The crane’s modular design ensures that it can be easily disassembled and transported to different sites, making it a versatile choice for various projects.

In summary, the XCMG XGC260 crawler crane is a versatile and powerful lifting machine, suitable for a wide range of construction and industrial applications. Its flexibility in boom and jib configurations, combined with strong lifting performance, makes it an excellent choice for demanding lifting tasks.
