XCMG XLC150

The XCMG XLC150 is a robust 150-ton crawler crane designed for heavy lifting applications. It features a telescopic boom with a maximum length of 77 meters and a 31-meter fixed jib. Its advanced engineering incorporates a superlift structure, efficient hydraulic systems, and a powerful electric system complemented by a PLC control system. The crawler unit provides excellent mobility and stability on various ground conditions, making it suitable for a wide range of construction tasks.

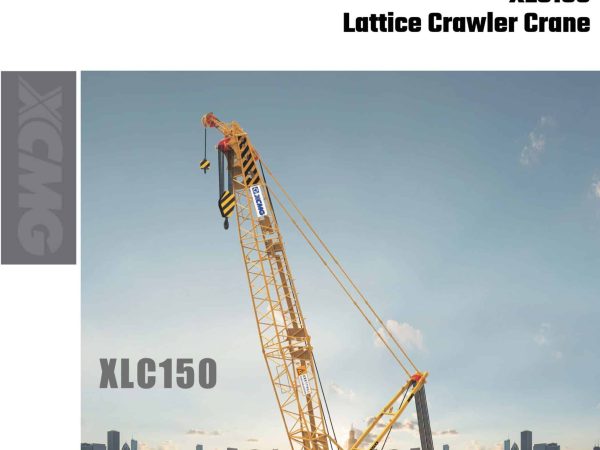

XCMG XLC150 Crawler Crane

Downloads

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models

Advertisement

Product Description

Boom Telescoping Code

The XLC150 features a multi-section boom that can reach up to 77 meters in length, with configurations allowing for various lengths to suit specific job requirements. The boom is made from high-tensile strength steel and is engineered to support significant loads with high safety coefficients, ensuring both performance and durability.

Mechanism Composition

The crane includes a winch system for hoisting that operates through a main and auxiliary winch mechanism. The system uses a reliable hydraulic motor and is capable of handling heavy loads with precision. Additionally, the crane boasts a luffing jib function, enhancing its versatility in lifting operations.

Slewing and Stability

Equipped with a high-quality slewing bearing, the XLC150 ensures smooth and controlled rotational movements. This feature is essential for precise positioning of heavy loads and contributes significantly to the safety and efficiency of the crane’s operations.

Frame and Crawler Unit

The chassis of the XLC150 is built on a box-type radial structure, which provides necessary rigidity and longevity. The crawler unit includes dual track rolls and a track frame that offers excellent traction and stability, allowing the crane to operate effectively on uneven terrains.

Electric and Engine Systems

The crane is powered by a turbocharged, water-cooled diesel engine that conforms to EURO III emission standards, ensuring both powerful performance and environmental compliance. The electrical system includes a combination of regular electrical controls and a PLC monitoring system, facilitating efficient operation and troubleshooting.

Hydraulic System

The advanced hydraulic system in the XLC150 uses a load-sensing control that optimizes the flow and pressure based on the operation needs, enhancing both energy efficiency and system responsiveness.

Capacity and Dimensions

The XLC150 can lift up to a maximum of 150 tons with a boom length ranging from 20 to 77 meters. In its fixed jib configuration, it can lift up to 50 tons. The crane also features a comprehensive range of speed settings for hoisting, boom lifting, and travel, which adapt to varying operational demands.

Overall, the XLC150 crawler crane from XCMG is a highly capable and versatile machine, engineered to meet the demanding needs of modern construction projects. Its robust design, combined with advanced technological features, ensures top-tier performance, safety, and reliability in a variety of lifting applications.
