Indo Farm Power-20

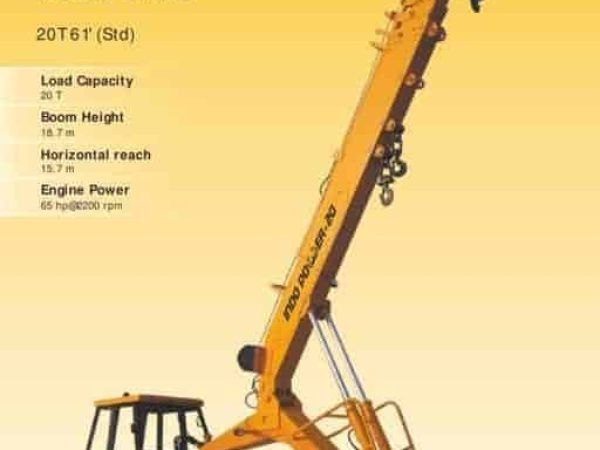

The Indo Farm Power-20 is the flagship of Indo Farm’s pick-and-carry crane lineup, designed for robust performance in heavy lifting applications. With a lifting capacity of 20 tons at a 1.7-meter radius, it offers stable and secure material handling at extended outreach, including 0.5 tons at a 15.75-meter horizontal reach. The 4-part telescopic boom features hydraulic actuation for the second and third stages and a rope-assisted fourth stage, reaching a full vertical height of 18.7 meters.

Under the hood, it’s powered by the Indo Farm 3070 DI 4-cylinder water-cooled diesel engine delivering 65 HP at 2,200 rpm. This engine is paired with a heavy-duty sliding mesh transmission system with 8 forward and 2 reverse gears, complemented by a high/low range selector for torque optimization under load. A dry single-plate clutch ensures long service life in crane-specific conditions. The crane achieves a top road speed of 30 km/h, ideal for efficient on-site movement and short hauls.

Maneuverability is facilitated through articulated power steering with twin hydraulic cylinders offering 53° articulation and a minimum turning radius of 7.2 meters. Operational timings include boom raising in 22–25 seconds, lowering in 13–16 seconds, and boom extension/retraction within 13–29 seconds depending on direction.

The winching system includes a six-fall wire rope setup driven by a heavy-duty hydraulic winch with a maximum line speed of 55 m/min. Braking is handled via a dual circuit air-operated “S” cam brake system on the front and mechanical wet disc brakes at the rear, with air-operated fail-safe parking brakes on both axles.

The chassis is a full-length, high-ground-clearance frame with a straight rear axle, rolling on four 12.00×20 – 18 PR front tyres and two 14.00×25 – 20 PR rear tyres. The hydraulic system includes a vane/gear-type pump and a 4-spool control valve with pressure relief for safe and efficient operation. Hydraulic oil capacity is 155 liters, with additional capacities of 60 liters fuel, 12.5 liters engine oil, and 45 liters gear oil. Total operating weight is 15,300 kg.

Safety systems include overload audio warnings, counterbalance valves on the lift cylinder, hoist safety brakes, and protective guards on all hydraulic cylinders. Standard accessories include an all-weather cabin, front bumper, rear-view mirrors, reflectors, tool kit, and full lighting system. Optional upgrades include a man basket, spark arrestor, fire extinguisher, over-hoist warning system, and steering wheel conversion.

With its impressive lifting reach, high torque powertrain, and a full suite of safety and comfort features, the Indo Farm Power-20 stands as a leader in its class for heavy-duty pick-and-carry operations.
