Ormig 35 iE

The mobile/industrial crane 35 iE from Ormig is a successful innovation in the field of lifting and moving loads in the industrial sector.

This was presented at Bauma 2019 in Munich.

Additional Information

Max. Rated Capacity

SI-unit

Metric Ton

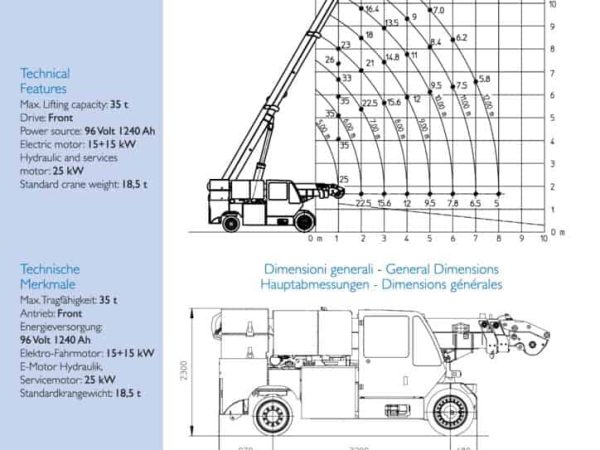

Downloads

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Photo Gallery

Product Description

The construction consists of a single steel box frame that runs the full length of the chassis with T-shaped sidewalls for maximum flexural and torsional rigidity, connected to the axles by cross members in the front and upper areas.
Designed and built by ORMIG from high quality steel.

The steering radius is smaller because the crane rotates around itself using the two rotating units on the rear wheels; the hydropneumatic suspension system allows a perfect distribution of the load on the rear wheels.
Steering accuracy is guaranteed by a kinematic mechanism patented by Ormig.
