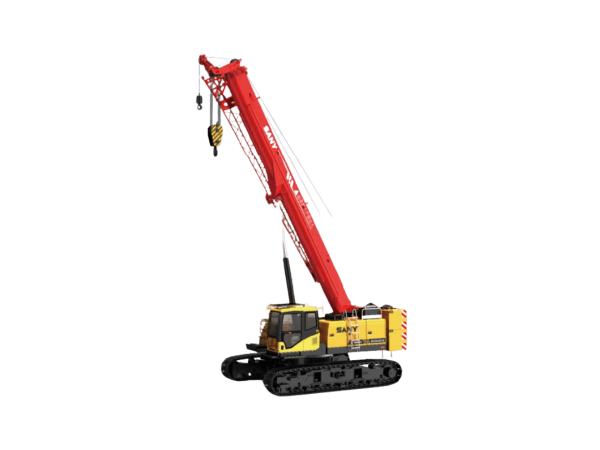

Sany STB600T5

The Sany STB600T5 represents a versatile solution in the 60-ton lifting class for infrastructure, construction, energy, and utility projects. The model features a rugged crawler undercarriage and a five-section 46-meter telescopic main boom constructed with a large U-shaped cross-section, which improves load-bearing efficiency and reduces flex during heavy lifting at long reach.

The crane is further outfitted with a 16-meter jib, allowing an extended lifting height and operating range. When fully configured, the crane offers a maximum lifting height of 44.8 meters, suitable for structural erection, tower component lifting, and installation work that demands vertical access. The 19-ton counterweight ensures enhanced stability across the full lifting envelope, even on uneven surfaces.

Powering the STB600T5 is a robust ISUZU engine, enabling the machine to travel at up to 2.5 km/h on tracks, while maintaining the capacity to tackle up to 45% grade slopes, thanks to its crawler traction system. The total operating weight is 64,900 kg, reflecting the heavy-duty steel and componentry used throughout the chassis, boom, and slewing mechanisms.

With overall dimensions of 14,717 mm (L) × 3,000 mm (W) × 3,300 mm (H), the STB600T5 maintains a relatively compact profile for transport given its lifting class. The track gauge and ground contact area provide the required base stability without exceeding standard road transport limits excessively.

Operational reliability is key in this crane class. The STB600T5 is likely to include advanced hydraulic and control systems—common to Sany designs—including load moment indicators, CAN bus systems, and boom/jib angle sensors to provide operators with real-time performance feedback and safety interlocks. While the exact slewing and hoisting speeds are not specified in the available data, cranes in this class typically feature smooth, proportional control for accurate load positioning.

In practical terms, the STB600T5 is tailored for projects requiring rapid deployment, long reach without rigging a lattice boom, and the ability to work on rough or unfinished ground. Its crawler design enables precise mobility on job sites with soft soil or gradients, and its telescoping boom provides fast cycle times when compared to lattice cranes of similar capacity.

In summary, the Sany STB600T5 is a well-rounded 60-ton crawler crane featuring long-reach lifting, off-road mobility, and high structural integrity. Designed with field productivity and transport efficiency in mind, it serves as an optimal choice for high-rise construction, bridgework, plant erection, and challenging terrain environments where telescopic flexibility is essential.
