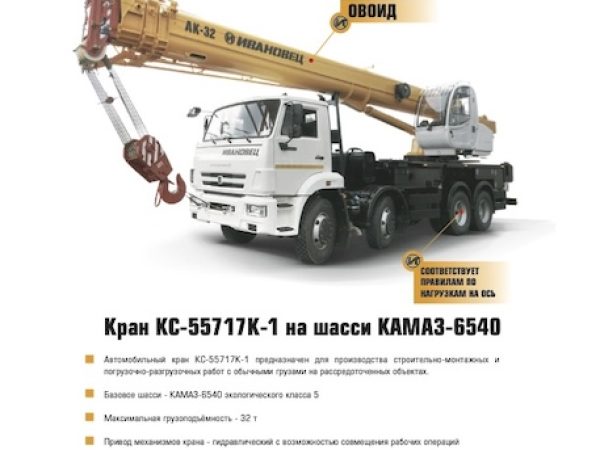

Ivanovets KC-55717K-1

Truck-Mounted Crane

The Ivanovets KC-55717K-1 is a powerful mobile crane mounted on a KAMAZ-6540 chassis, equipped to handle extensive construction and loading operations with a maximum lifting capacity of 32 tons. Featuring a four-section telescopic boom that extends up to 31 meters, and a 9-meter jib for additional reach, this model is optimized for high-performance in diverse settings.

Downloads

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models

Product Description

The KC-55717K-1 crane is designed for high-efficiency lifting operations, particularly suitable for construction and loading tasks that require handling of conventional loads. It features advanced hydraulic mechanisms that allow for simultaneous operations, enhancing its operational versatility and productivity.

Chassis and Engine

This model is built on the robust KAMAZ-6540 chassis with an 8×4 wheel formula, providing excellent stability and maneuverability on various terrains. It is powered by a Cummins ISB6.7E5 300 engine, which delivers 221 kW (300 hp), facilitating strong performance across all types of lifting operations. The crane’s ability to travel up to 60 km/h ensures quick and efficient site-to-site relocation.

Lifting Capabilities

The KC-55717K-1’s telescopic boom can reach a length of 31 meters, coupled with a 9-meter jib, enabling a maximum lifting height of 40.0 meters. This crane boasts a load moment of 103 tm, with a nominal speed for lifting operations of 4.9 m/min and a maximum hook speed of 40 m/min. It also features a rotation speed from 0.3 to 2.0 rpm, ensuring precise load handling and placement.

Safety and Operational Control

Safety is paramount with this model, which includes a microprocessor-based load limiter that features a digital display for real-time monitoring and control of operational parameters. This system helps maintain safety standards by preventing overloading and ensuring stable operation throughout the crane’s use.

Dimensions and Transportability

The KC-55717K-1 measures 12000 mm in length, 2550 mm in width, and 3900 mm in height in its transport configuration, with an equipped mass of 27.2 tons (27.7 tons with additional counterweight). The crane’s design ensures it can be legally transported over public roads, adhering to axle load regulations.

Overall, the Ivanovets KC-55717K-1 is a highly capable crane, designed to deliver exceptional lifting power and safety, making it a valuable asset for large-scale industrial and construction projects.
