Ivanovets KC-55735-6

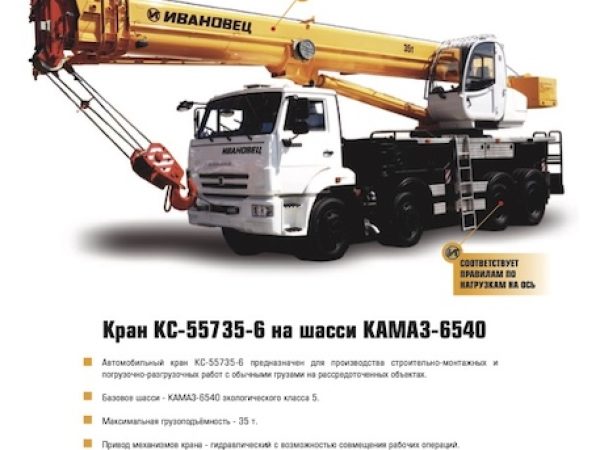

The Ivanovets KC-55735-6 is a high-capacity mobile crane built on a robust KAMAZ-6540 chassis, designed for extensive construction and loading tasks. This crane is equipped with a four-section telescopic boom that extends up to 30.3 meters, coupled with a 9.0-meter jib, allowing for a maximum lifting capacity of 35 tons. It’s particularly noted for its hydraulic drive system and electro-proportional control for crane operations, making it highly efficient and versatile for heavy-duty operations.
Downloads
*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.
Related Models
Product Description
The KC-55735-6 crane is engineered to perform a variety of construction, mounting, and loading tasks, especially suited for handling conventional loads across dispersed sites. Its design includes a hydraulic mechanism that enhances the ability to perform multiple operations simultaneously, significantly boosting operational efficiency and effectiveness.
Chassis and Engine
Mounted on the KAMAZ-6540 chassis with an 8×4 wheel formula, this crane offers exceptional stability and maneuverability. It is powered by a Cummins ISB6.7E5 300 engine, which produces 215 kW (292 hp). This engine ensures robust performance and allows the crane to achieve travel speeds up to 60 km/h, enabling quick transitions between different work sites.
Lifting Capabilities
With a maximum lifting capacity of 35 tons and a load moment of 105 tm, the KC-55735-6 is equipped for heavy lifting. The telescopic boom can extend from 10.1 meters to 30.3 meters, and with the additional jib, the maximum lifting height reaches 39.0 meters. It features a lifting speed of 0.2 to 5.1 m/min and a maximum hook speed of 38 m/min. The crane also supports a slewing speed of 0.3 to 1.0 rpm, offering precise load handling.
Safety and Operational Control
The crane includes advanced safety features such as a microprocessor-based load limiter with a digital display and an integrated recorder of operational parameters. This system ensures operational safety by preventing overloading and facilitating accurate control over crane operations.
Dimensions and Transportability
In its transport configuration, the KC-55735-6 measures 11800 mm in length, 2550 mm in width, and 4000 mm in height. The equipped mass of the crane with the main boom is 26.63 tons, slightly increasing with the jib to 27.13 tons. The design ensures a balanced load distribution, making it compliant with road transport regulations for safe and efficient mobility.
Overall, the Ivanovets KC-55735-6 combines robust construction with high lifting capacity and advanced control features, making it an ideal choice for large-scale industrial and construction projects requiring significant lifting capabilities.
