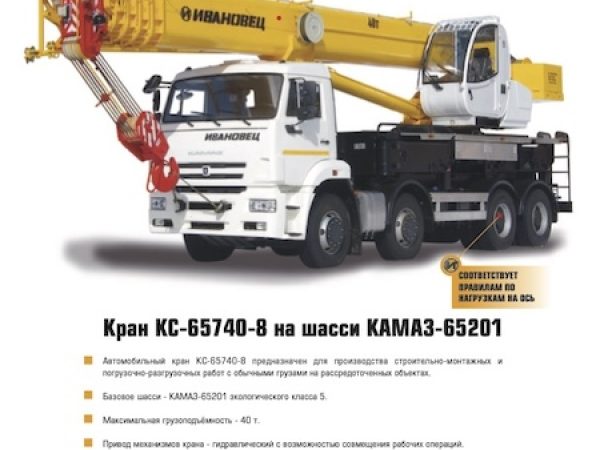

Ivanovets KC-65740-8

Truck-Mounted Crane

The Ivanovets KC-65740-8 is a formidable mobile crane designed for complex construction, mounting, and loading tasks, capable of handling standard loads on diverse sites. This crane is mounted on a KAMAZ-65201 chassis with an 8×4 wheel formula and features an extensive five-section telescopic boom extending up to 37.8 meters. With a powerful 400 horsepower engine and a maximum lifting capacity of 40 tons, it is ideally suited for heavy-duty operations requiring significant reach and strength.

Downloads

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models

Product Description

The KC-65740-8 crane is tailored for high-demand environments, where precision and robust lifting capabilities are paramount. It integrates advanced hydraulic mechanisms allowing for simultaneous operations, which enhances productivity and operational flexibility significantly.

Chassis and Engine

This model is built on the sturdy KAMAZ-65201 chassis and is equipped with a KAMAZ 740.735-400 engine producing 294 kW (400 hp), ensuring ample power for the most demanding tasks. This setup provides the crane with the ability to reach speeds of up to 60 km/h, facilitating rapid and efficient movement across work sites.

Lifting Capabilities

The crane boasts a maximum load capacity of 40 tons with a load moment of 120 tm, making it one of the more capable machines in its class. Its telescopic boom can be extended from 10.3 meters to 37.8 meters, with an additional 9-meter jib that extends the maximum lifting height to 46.6 meters. The crane features a lifting speed range of 0.2 to 5.1 m/min and a maximum hook speed of 38 m/min, alongside a slew rate of 0.3 to 1.0 rpm for optimal load handling.

Safety and Operational Control

Safety features include a microprocessor-based load limiter with digital display and an integrated recorder of operational parameters, enhancing safety by preventing overloads and ensuring operational stability. The crane also features an electro-proportional control system for precise operation and remote-controlled outriggers for improved stability during lifting operations.

Dimensions and Transportability

In its transport configuration, the KC-65740-8 measures 12000 mm in length, 2550 mm in width, and 4000 mm in height, with an equipped mass of 30.43 tons (30.93 tons with the jib). It is designed to comply with road transport regulations, ensuring it can be legally and safely transported on public roads.

Overall, the Ivanovets KC-65740-8 combines exceptional lifting capacity with advanced safety features and powerful performance, making it a critical asset for extensive industrial and construction projects.
