Demag AC535

Demag AC535 is a 200 ton All Terrain Crane.

Additional Information

Downloads

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Predecessor/Successor Models

Photo Gallery

Product Description


Photo by Asiagroup Leasing.

The AC535 is a 200 tonne class all terrain crane developed by Demag. The all terrain crane comes with two different chassis type – 6-axle with 72 tonne axle loads and 5-axle with 60 tonne axles loads to meet requirements for different countries regulations. The crane is rated 180 tonne at 3 metres radius. It is equipped with a 5-section telescopic boom from 14.7 to 60 metres and has a full counterweight configuration of 64 tonnes.

AC535 has a fixed jib extension of length from 9.7, 14.5, 20.5, 26.5 and 32.5 metres which can be offset-table at 0, 20 and 40 degrees. The maximum lifting height for the jib extension is 92.5 metres (60.0m main boom + 32.5m jib extension).

It also comes with luffing jib attachment from 20 to 58 metres. The maximum lifting height 96 metres – 35m main boom + 3m  adapter + 58m luffing jib. There is another configuration that was able to reach 94.2 metres with 50.2m main boom + 3m adapter + 41m luffing jib.

READ MORE:  XCMG QAY180



Downloads

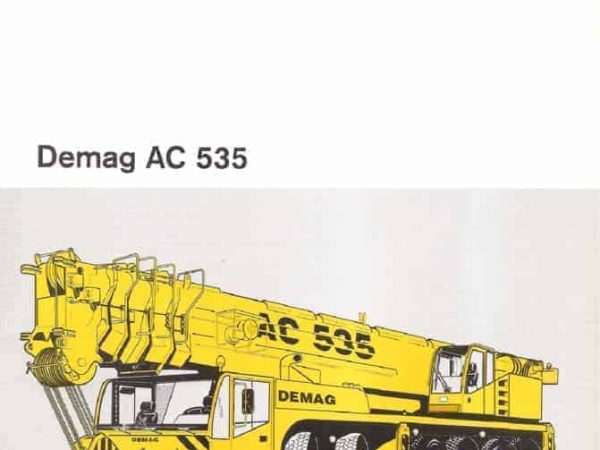

thumbnail of Demag AC535 metric
