Hitachi KH230-3

Crawler Crane

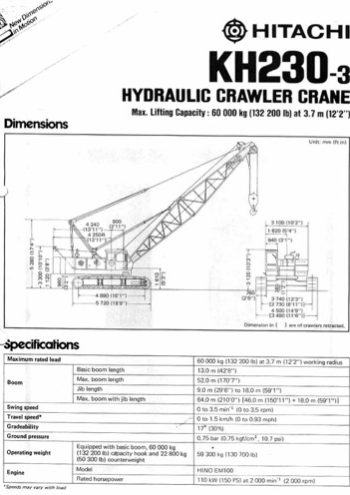

The Hitachi KH230-3 is a 60-ton capacity crawler crane designed for versatile lifting tasks. It has a maximum rated load of 60,000 kg (132,200 lb) at a 3.7 m (12’2″) working radius. The crane’s basic boom length is 13 m (42’8″), extendable to 52 m (170’7″), and can further extend to 64 m (210’0″) with a jib. Powered by a Hino EM100 engine providing 110 kW (150 PS) at 2,000 rpm, it is suited for medium-heavy lifting tasks, ensuring efficient performance across various job sites.

Downloads

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models

Product Description

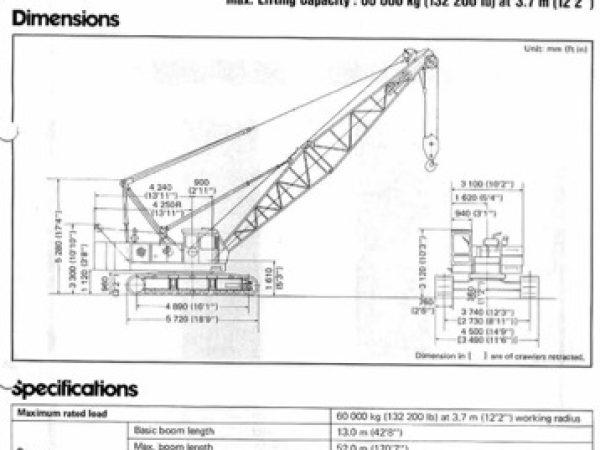

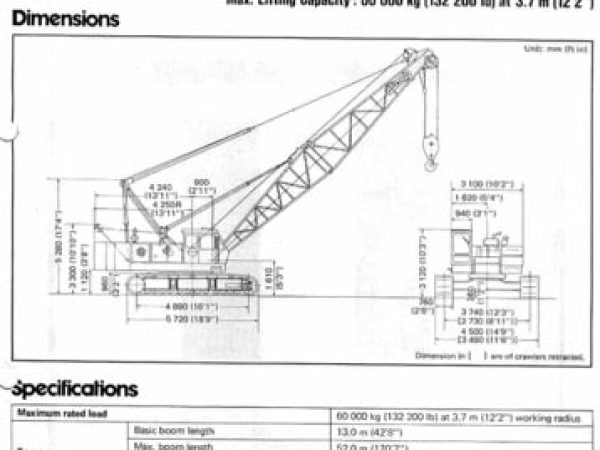

The Hitachi KH230-3 crawler crane is an adaptable 60-ton machine engineered to handle demanding lifting operations. Its maximum rated load capacity of 60,000 kg (132,200 lb) at a 3.7 m (12’2″) working radius ensures it can manage a variety of load weights while maintaining stability and precision. This crane is fitted with a basic boom length of 13 m (42’8″), and can be extended up to a maximum of 52 m (170’7″). For operations requiring additional reach, a jib attachment allows for a maximum boom length with jib of 64 m (210’0″), offering substantial versatility on job sites.

The crane’s swing speed is rated at 0 to 3.5 rpm, enabling smooth rotational control during operations. Its travel speed is 0 to 1.5 km/h (0.93 mph), making it capable of stable maneuverability on construction sites. The gradeability of 17° (30%) allows for reliable performance on sloped or uneven terrain, ensuring safe and consistent movement.

The ground pressure of 0.75 bar (10.7 psi) ensures that the crane can operate stably on various ground conditions, minimizing the risk of ground disturbance or sinking during operations. The machine has an operating weight of 59,300 kg (130,700 lb), which includes a 60,000 kg (132,200 lb) capacity hook and a 22,800 kg (50,300 lb) counterweight.

Powered by a Hino EM100 engine delivering 110 kW (150 PS) at 2,000 rpm, the KH230-3 offers consistent power and fuel efficiency. Its reliable engine ensures it is equipped to perform in challenging lifting scenarios, making it an ideal solution for a range of medium-duty lifting applications across various industries.
