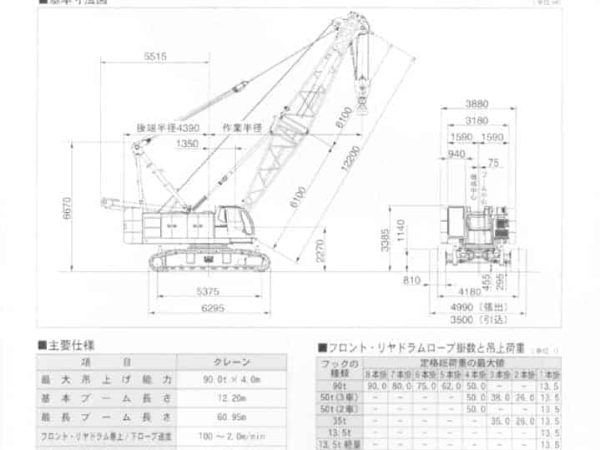

Hitachi-Sumitomo SCX900HD-1

The Hitachi-Sumitomo SCX900HD-1 is a powerful crawler crane with a maximum lifting capacity of 90 tons at a 4.0-meter working radius. The crane is built to handle medium-to-large lifting tasks, with a basic boom length of 12.2 meters that extends up to 60.95 meters, providing flexibility for various lifting needs. The winch system enables efficient load handling, with adjustable speeds from 120 meters per minute in high mode to 2.0 meters per minute in low mode, allowing for precise lifting and positioning of loads.

The crane is driven by a Mitsubishi 6D24-TLE2A engine, which delivers a rated power output of 235 kW at 2,000 rpm. This engine provides the necessary power to perform demanding lifting operations while maintaining fuel efficiency. The crane’s swing speed is 2.9 rpm, facilitating smooth rotational movements during operations.

The SCX900HD-1 is equipped with a sturdy undercarriage that allows a travel speed of 1.8 km/h, suitable for maneuvering across various job sites. It also has a gradeability of 30%, enabling the crane to operate on slopes and uneven ground. The crane’s ground contact pressure is approximately 90.9 kPa, ensuring stability and safety during lifting activities.

The crane’s operating weight is around 86.6 tons, making it a stable platform for heavy lifting. The SCX900HD-1 supports various hook configurations, with hook weights ranging from 1,200 kg for a 90-ton hook to 150 kg for a 13.5-ton hook, further enhancing its versatility for different lifting requirements.

Designed for construction, industrial, and infrastructure projects, the Hitachi-Sumitomo SCX900HD-1 offers reliable performance, flexible boom configurations, and powerful lifting capabilities to meet the demands of challenging lifting applications.
