Sany SCC10000

The Sany SCC1000 is a groundbreaking 1,000-tonne crawler crane, a pioneer among Asian crane manufacturers, and the first of its kind to be developed by Sany. It rolled off the production line in 2008, showcasing Sany’s advanced R&D and manufacturing capabilities. This powerful crane has proven its worth in heavy lifting operations at critical sites like the Fuqing nuclear power station in Fujian, China, where it was instrumental in lifting a 170-ton dome.

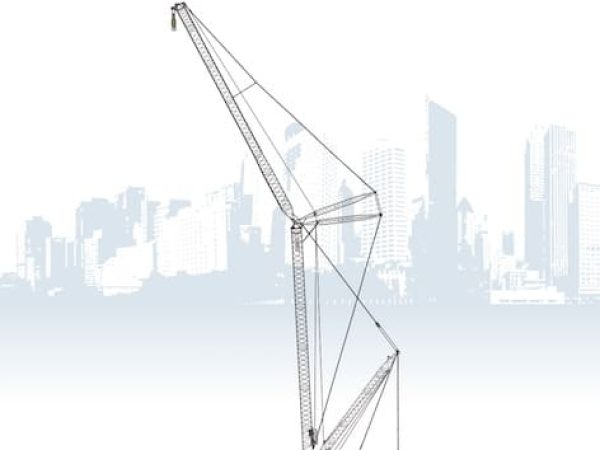

Sany SCC10000 Crawler Crane Load Chart

Downloads

Available Downloads:

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models

Advertisement

Product Description

Development and Deployment

Sany’s achievement in launching the SCC1000 not only marked a milestone in its corporate history but also established it as a leader in heavy lifting technology in Asia. The first unit, exemplifying robust engineering and innovation, came off the production line in 2008 and has since been a testament to Sany’s commitment to excellence in the crane industry.

Performance at Fuqing Nuclear Power Station

The photograph captured at the Fuqing nuclear power station illustrates the SCC1000 in action, utilizing its LJDB configuration—consisting of a 60m main boom, 54m luffing jib, superlift mast, and superlift counterweight. This setup was adeptly employed to hoist the nuclear station’s dome, which measures 11m in height and 37m in diameter, weighing 170 tons, at a working radius of 24m and a height of 60m.

Continuous Operation and Versatility

Since its launch on June 18, 2010, the SCC1000 has been operational continuously for nearly 60 days, tackling various complex hoisting tasks. Its versatility has been showcased in numerous critical lifting operations involving suspension girders and steel structures, as reported by the Zhongyuan Engineering Corp, a subsidiary of the China National Nuclear Corporation.

Technical Specifications

  • Maximum Lifting Capacity: 727 tons for standard operations, and up to 1,000 tons with superlift configuration.
  • Maximum Boom Lengths: Varies from 30 to 90 meters for the main boom, and 42 to 120 meters when configured for superlift.
  • Jib Configurations: Offers a fixed jib length up to 18 meters and a luffing jib that extends from 30 to 96 meters.
  • Maximum Combination: Various combinations are available, reaching up to a height of approximately 190 meters with a (96+96) superlift configuration.

Superlift Specifications

  • Max. Lifting Capacity: 1000 ton
  • Max. Boom Length: 42~120m
  • Max. Luffing Jib Length: 30~96m
  • Max. Combination: (96+96), achieving a maximum height of approximately 190m.

The SCC1000’s introduction not only reflects Sany’s engineering expertise but also its ability to meet the demanding needs of modern construction and industrial projects, solidifying its status as a heavyweight in the global crane market.
