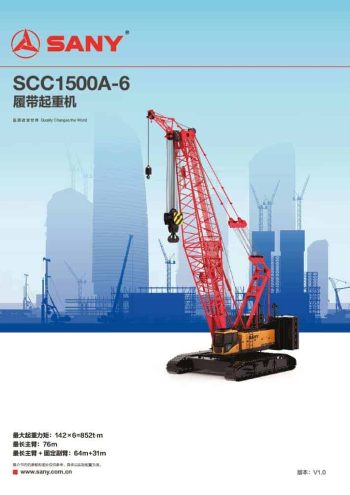

Sany SCC1500A-6 Load Chart PDF + Specifications

The SANY SCC1500A-6 is a modern evolution in SANY’s 150-ton crawler crane series, offering improvements in operating efficiency, assembly convenience, and control precision. Designed for mid-heavy lifting operations across civil construction, energy infrastructure, and heavy industry, this crane builds upon the core capabilities of the SCC1500A lineup with structural and system enhancements.

The crane’s main boom spans from 15.2 to 76.2 meters, assembled using modular lattice boom sections for flexibility and strength. It can be configured with a fixed jib from 12 to 24.2 meters, allowing a maximum boom + jib combination of 61 + 24.2 meters, reaching working heights above 85 meters and radii beyond 62 meters. These specifications make it suitable for wind turbine components, structural steel, and bridge segment lifts.

Rated at 150 tons maximum lifting capacity at a 4.6-meter working radius, the SCC1500A-6 delivers a lifting moment of 850 t·m, matching the standard for its class. It is powered by a Cummins QSL9 engine, delivering 242 kW (325 hp) at 2100 rpm, featuring electronic fuel control, water cooling, turbocharging, and compliance with Tier 3 emission standards for global deployment.

The hydraulic system employs a load-sensing, power-regulated design that ensures responsive, efficient operation while minimizing energy waste. The main and auxiliary winches provide line speeds up to 120 m/min, and the slewing system supports continuous 360° rotation at speeds up to 2.0 rpm with dual-motor drive for smooth and precise movement.

Crawler travel is supported by wide 1000 mm track shoes and dual hydraulic motors per track, giving the crane excellent ground pressure distribution and mobility across soft or uneven terrain. The maximum travel speed is 1.3 km/h, and the crane can handle grades up to 30%, ensuring flexibility on large job sites.

Designed with transport and assembly in mind, the SCC1500A-6 is fully modular. Each disassembled component is designed to remain under 45 tons, aligning with road transport regulations. Assembly is aided by hydraulic assist systems, reducing dependency on auxiliary lifting equipment and speeding up setup.

The operator’s cab is fitted with a modern control interface, wide visibility panels, and an adjustable seat with suspension. Standard features include an LMI (Load Moment Indicator), overhoist and overload protection, emergency stop systems, and integrated diagnostics, all focused on safety and operational confidence.

In essence, the SANY SCC1500A-6 carries forward the core advantages of the SCC1500A platform with refinements in system control, lifting range, and ease of use—delivering dependable, efficient performance for medium to heavy-duty lifting across demanding construction and industrial applications.
