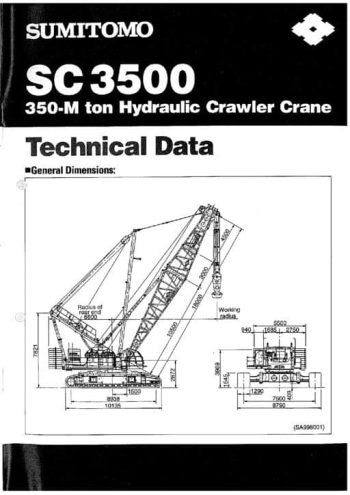

Sumitomo SC 3500

The Sumitomo SC3500 is a heavy-duty, 350-ton capacity crawler crane, built to perform in challenging environments with precise control and enhanced safety features. The crane’s upper revolving frame is precision-machined and constructed from high-strength steel, supported by a durable hydraulic power pack that ensures seamless operations. This machine has a modular and computer-analyzed design for optimized load management and durability, featuring a robust sub-frame and a large hydraulic reservoir with a capacity of 650 liters for continuous operation.

Equipped with a Mitsubishi 8DC9T-CE engine, the SC3500 generates a power output of 416 kW at 2,200 rpm, which drives the crane’s functions with efficiency. The diesel engine is water-cooled and turbocharged, delivering reliable performance even under high loads. The crane is fitted with a comprehensive hydraulic system that includes a triplicate-tandem pump set with load-sensing and variable displacement capabilities, allowing for simultaneous operations of various crane functions such as hoisting, slewing, and boom extension. This system is supported by SUMITOMO’s advanced “SC” controller, which regulates pump pressure and discharge to optimize performance and minimize power loss.

The SC3500’s main boom can be configured up to 96 meters, and the crane is also equipped with a variety of boom extensions, including heavy-duty and light-duty options for enhanced reach and versatility. The boom sections are connected via Sumitomo’s patented “fork-type” joints, which offer both stability and ease of assembly. For increased flexibility, the crane can be fitted with a variety of jibs, including tower and auxiliary short jibs, expanding its operational range.

In terms of safety, the SC3500 is equipped with the Sumitomo SML-10 Load Moment Limiter, an automated system that monitors load conditions and prevents over-hoisting. This limiter provides real-time feedback to the operator via an LCD display, which shows load percentage, lifting height, and boom angle. Additional safety features include a dual boom over-hoist limiting device, hook over-hoist limiting devices, and an emergency stop system strategically placed throughout the crane. The crane also incorporates safety devices such as anti-two block systems and a load indicator with color-coded alerts for load monitoring.

The crane’s undercarriage features an all-welded construction with ten track rollers per side, capable of handling demanding terrain with ease. The tracks are equipped with 1,290 mm wide shoes, self-cleaning multiple hinged track plates, and heat-treated components for longevity. The crawler drive system is a two-speed, bi-directional, axial piston hydraulic motor that offers a maximum travel speed of 1 km/h and a gradeability of 35%. For added stability, the crane is equipped with hydraulic jack-up cylinders to facilitate easy assembly and disassembly of the crawler frame during transport.

The SC3500 also prioritizes operator comfort with a spacious and acoustically insulated cabin. The cabin is equipped with an adjustable seat, HVAC system, full-color display monitors, and controls within easy reach, enabling safe and comfortable operations over long shifts. A range of optional features, such as a rearview camera, aircraft warning lights, and an anemometer, are also available to further enhance safety and operational efficiency.

Overall, the Sumitomo SC3500 stands as a powerful and versatile crawler crane, capable of meeting the demanding needs of large-scale construction projects, from infrastructure development to heavy industrial applications. Its combination of advanced hydraulics, comprehensive safety features, and ergonomic design makes it an invaluable asset for lifting and handling heavy loads with precision and reliability.
