Crawler Crane

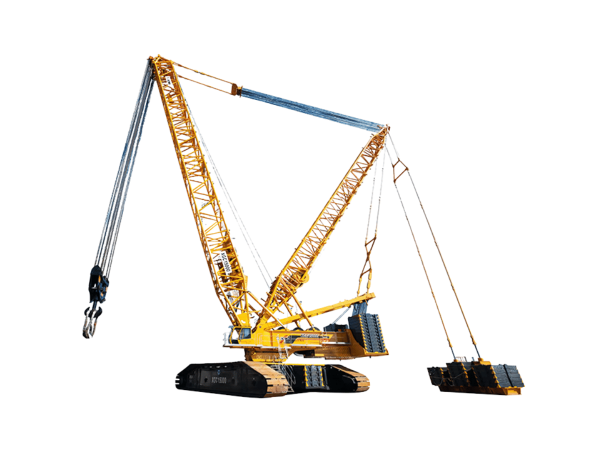

XCMG XGC15000

XGC15000 crawler crane is a high-end product developed by our company to meet the hoisting requirement of the large-scale constructions such as coal chemical industry, nuclear power, petrifaction, metallurgy, etc., and participate in the international competition.

Downloads

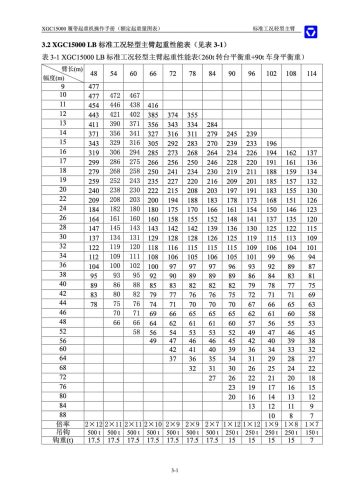

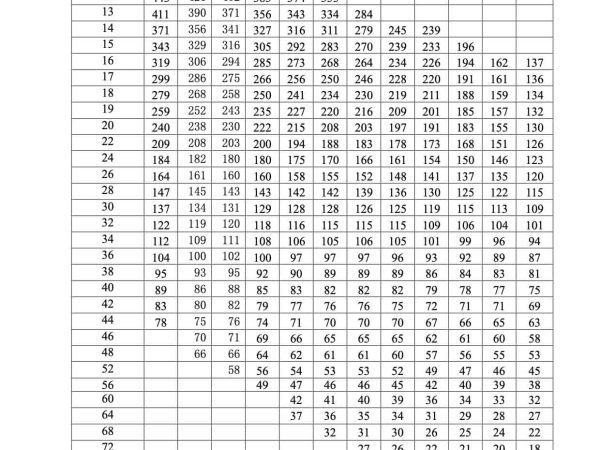

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models

Product Description

Draw advanced techniques at home and abroad, and apply advanced design methods, featuring structure design optimization and excellent hoisting performance.
Adopt the crawler chassis and the truss jib with many combinations, which has small ground pressure, large lifting height, high lifting performance, and can travel with a load. The tower jib can work near to the constructions. The super-lift device with the variable super-lift counterweight radius can supply strong lifting performance and flexibility.
The program control system ensures the safe working of the crane.
The closed pump-control variable hydraulic system and the electronic proportional operation is energy efficient and controls precisely.
Adopt the electronic control parts, power parts, and drive parts of the international famous enterprises, which is environmentally friendly and reliable.

Item		Unit	Parameter
Max. lifting capacity		t	1000
Standard working condition	Heavy boom length	m	30～96
	Light boom length	m	48～114
	Tower jib length	m	30～96
Super-lift working condition	Heavy Boom length	m	42～120
	Light Boom length	m	90～150
	Tower jib length	m	30-108
	Special jib length	m	18
Max. single line lifting speed		m/min	130
Max. single line speed of boom luffing		m/min	53×2
Max. single line speed of tower boom luffing		m/min	125
Max. single line speed of super-lift luffing		m/min	130
Swing speed		r/min	0.9
Travel speed		km/h	0.8
Average ground pressure		MPa	0.156
Gradeability		%	30
Engine power		kW	641
Overall weight（30m heavy boom、1000t hook）		t	850
Max. single unit weight for transportation		t	59
Max. single unit dimensions for transportation （L×W×H）		m	5.9×3.4×3.12
