XCMG XLC110MC

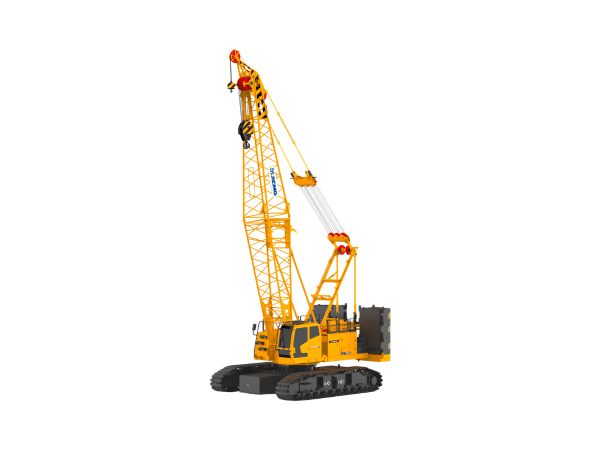

The XCMG XLC110MC is a medium-capacity lattice boom crawler crane designed to handle heavy lifting operations across a wide range of industries including civil construction, infrastructure projects, mining operations, and industrial installation work. With a maximum rated lifting capacity of 110 tonnes, the crane is capable of performing demanding lifting tasks while maintaining stability and efficiency on challenging job sites.

The crane features a modular lattice boom system, allowing it to be configured according to the lifting requirements of different projects. The main boom length ranges from 13 metres to 64 metres, providing flexibility for both short-radius heavy lifts and longer-reach operations. For additional reach and lifting height, the crane can be equipped with a fixed jib ranging from 7 metres to 19 metres, allowing a maximum boom and jib combination of 52 metres plus a 19-metre jib.

The XLC110MC delivers efficient operational performance through its hydraulic system and lifting mechanisms. The crane offers a maximum hoisting speed of up to 140 m/min, allowing fast lifting cycles and improved productivity during lifting operations. The luffing speed reaches up to 75 m/min, enabling rapid boom angle adjustments, while the crane’s slewing speed of approximately 2.1 rpm allows smooth and controlled rotation during load handling.

Mobility on job sites is supported by the crawler undercarriage, which provides strong stability and traction when operating on uneven ground or soft surfaces. The crane has a maximum travel speed of approximately 1.9 km/h and a gradeability of around 30%, allowing it to move effectively across construction sites while maintaining operational stability.

Power for the crane is supplied by a Weichai WP7G270E301 diesel engine, which delivers 199 kW of rated power at 2,100 rpm. The engine complies with China Stage III and EU Stage IIIA emission standards, ensuring efficient fuel consumption and reliable performance under heavy working conditions.

In terms of weight and transport, the crane has an operating weight of approximately 98 tonnes, with an average ground pressure of about 0.098 MPa, enabling it to operate effectively on soft terrain without excessive ground impact. For transportation between job sites, the crane can be disassembled into manageable components, with the maximum transport piece weighing approximately 23.5 tonnes. The crane’s typical transport dimensions are approximately 13.6 metres in length, 3.4 metres in width, and 3.1 metres in height.

The XLC110MC is equipped with modern control and safety systems designed to enhance operator efficiency and job site safety. The crane uses a CAN-bus electro-hydraulic control system, allowing precise coordination of crane movements. The operator interface includes a 12.1-inch high-definition touchscreen display, which provides real-time monitoring of crane parameters and lifting information.

Additional safety features include a Load Moment Indicator (LMI) system that continuously monitors lifting conditions to prevent overload situations. The crane also incorporates emergency stop functions, slew locking mechanisms, and a camera monitoring system to improve visibility and operational safety during lifting operations.

Overall, the XCMG XLC110MC offers a balanced combination of 110-tonne lifting capacity, flexible lattice boom configurations, reliable engine performance, and advanced control systems. Its crawler-based design and versatile lifting capabilities make it well suited for construction projects, infrastructure development, mining operations, and heavy industrial lifting tasks where stability, mobility, and efficient lifting performance are essential.
