Crawler Crane

Zoomlion ZCC3200V

The Zoomlion ZCC3200V is a heavy-duty 320-ton crawler crane, notable for its strong lifting capabilities and versatile configurations. It features a main boom length that ranges from 24 to 93 meters, a fixed jib length of 9 to 36 meters, and a luffing jib that extends from 24 to 66 meters. The maximum combined length of the main boom and fixed jib reaches an impressive 63+36 meters, while pairing the main boom with the luffing jib can achieve a reach of 60+66 meters. The crane’s maximum lifting moment is a substantial 1935 ton-meters.

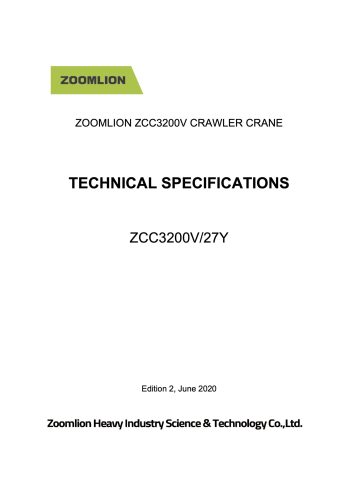

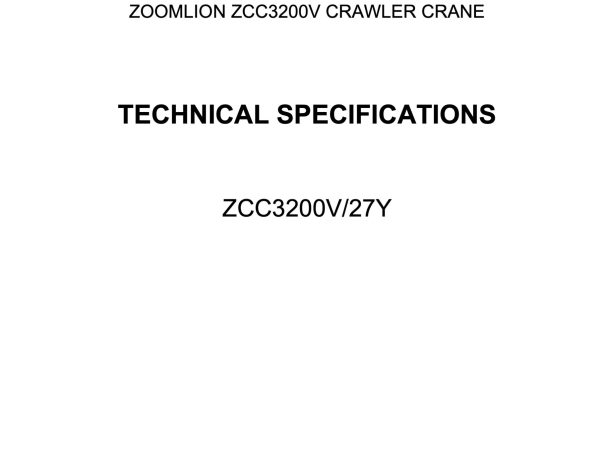

Downloads

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models

Product Description

Designed for high efficiency and performance, the ZCC3200V excels in various lifting operations, including shield working mode and steel cage lifting, capable of satisfying the requirements for erecting shield machines and bridge beam lifting. Its modular design enables convenient disassembly and transportation, optimizing its effectiveness on different job sites.

The ZCC3200V is not only powerful but also transport-friendly, with the main boom and fixed jibs able to be transported in a package that ensures better road transport passability. The minimum transport weight stands at 36.6t, which can be further reduced to 32.5t to meet container shipping requirements.

Highlighting its investment value, the ZCC3200V offers a universal jib design, where the fixed jib, luffing jib, and the top section of the shield jibs are interchangeable with standard booms, reducing the purchase cost and improving the utilization rate of the components. This universality extends to compatibility with the ZCC3000 model, enhancing the crane’s flexibility across various project requirements.

The crane’s construction and capabilities make it a strategic investment for heavy-duty lifting, with a design focused on maximizing ROI through universal components, ease of transport, and adaptability, making it a reliable choice for a multitude of complex lifting tasks.

Technical Specifications

Main Boom Specifications:

Maximum Lifting Capacity: 320 tons at a 6-meter radius.
Maximum Lifting Moment: 1935 ton-meters.
Length Range: The main boom extends from 24 to 93 meters for significant vertical and horizontal reach.

For lighter applications, the crane also offers a “light main boom” configuration:

Light Main Boom Lifting Capacity: 122 tons at an 11-meter radius.
Light Main Boom Length: Ranges between 67.5 and 106.5 meters.

Fixed Jib Specifications:

Maximum Lifting Capacity: 130 tons at a 9-meter radius.
Fixed Jib Length Range: 9 to 36 meters.
Main Boom Lengths for Fixed Jib Operations: 24 to 81 meters.
Maximum Combined Length (Main Boom + Fixed Jib): Up to 63+36 meters.
Fixed Jib Angles: Configurable at 10°, 20°, and 30° for precise load control.

Luffing Jib Specifications:

Maximum Lifting Capacity: 118 tons at a 12-meter radius.
Luffing Jib Length Range: 24 to 66 meters.
Main Boom Lengths for Luffing Jib Operations: 24 to 60 meters.
Maximum Combined Length (Main Boom + Luffing Jib): Up to 60+66 meters.
Main Boom Angles for Luffing Jib: Adjustable at 85°, 75°, and 65°.

Winch Speeds:

Hoisting Winch 1: 120 meters/min (at the 6th layer).
Hoisting Winch 2: 116 meters/min (at the 6th layer).
Derricking Winch: 2×50 meters/min (at the 6th layer).

Crane Parameters:

Slewing Speed: 0 to 1 rpm.
Traveling Speed: 0 to 1 km/h.
Rear Counterweight: 120 tons.
Central Counterweight: 40 tons.
Maximum Transport Weight of a Single Component: 44.5 tons (with mast and winch).
Total Weight with Main Boom: 272 tons (with a 260-ton load hook).
Average Ground Pressure: 0.135 MPa.
Maximum Transport Dimensions (L×W×H): 13.7×3×3.22 meters.
