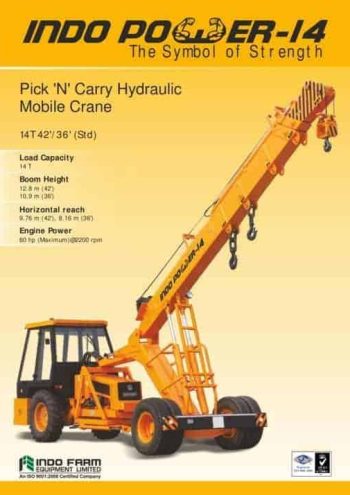

Indo Farm Power-14 (Std)

The Indo Farm Power-14 Standard is a 14-ton capacity pick-and-carry crane offered in 42-foot and 36-foot boom variants. With a maximum boom height of up to 12.8 meters and horizontal reach of 9.76 meters, it is powered by a 60 HP engine and features articulated steering, making it ideal for heavy lifting in infrastructure and industrial projects.

GET SPEC SHEET

somdn_product_page

*Crane Specifications, Load Charts, and Crane Manuals are for reference only.
Contact the crane manufacturer for manuals to operate the crane properly.

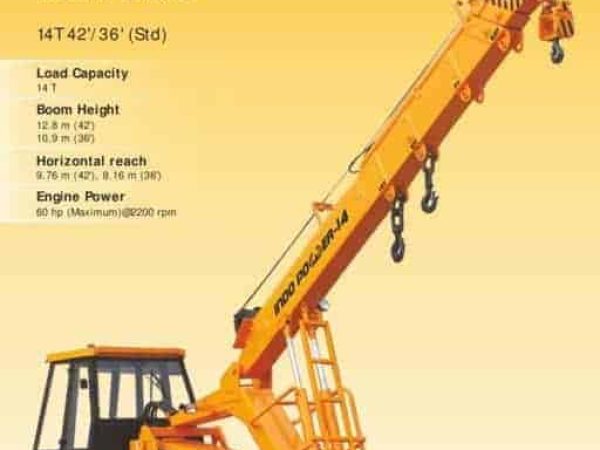

thumbnail of Power 14_spec_mt_en_std

Product Description

The Indo Farm Power-14 Standard crane is a high-strength, versatile pick-and-carry unit engineered to tackle heavy-duty lifting and material handling with ease. Available in two boom configurations—42 feet and 36 feet—it delivers a lifting capacity of 14 tons at a 1.7-meter radius. The 42-foot boom reaches a height of 12.8 meters with a 9.76-meter horizontal reach, while the 36-foot version achieves 10.9 meters vertically and 8.16 meters horizontally.

Its boom is a 3-part, hydraulically telescoping box-type structure, raised and lowered by two double-acting cylinders. A heavy-duty 4-fall winch system delivers a line speed of 55 m/min, supported by integrated fail-safe brakes. Telescoping extension and retraction times vary by boom size, with in/out speeds between 16 to 30 seconds.

Power is supplied by the Indo Farm 3065 DI, a 4-cylinder water-cooled diesel engine delivering 60 HP at 2,200 rpm. The drivetrain includes a heavy-duty sliding mesh transmission with 8 forward and 2 reverse gears and a high/low range selector. Travel speed reaches 30 km/h, ensuring quick inter-site deployment.

The articulated steering system uses two hydraulic cylinders providing up to 53° of articulation and a tight 6.5-meter turning radius, ideal for navigating congested job sites. The machine rests on four 11.00×20 – 16 PR front tyres and two 13.00×24 – 12 PR rear tyres, supported by a full-length, high-clearance chassis with a straight rear axle.

Braking is handled via pneumatically assisted hydraulic drum brakes at the front and mechanically actuated disc brakes at the rear. The hydraulic system includes a vane or gear-type pump, a 4-spool control valve with built-in pressure relief, and filtration via a 100-mesh suction strainer and a 25-micron return line filter. Fluid capacities include 130 liters for hydraulics, 60 liters of fuel, 12 liters of engine oil, and 45 liters of gear oil.

Safety systems are extensive, with overload audio alarms, hose failure protection, lift cylinder guards, and safety brakes on the hoist. Standard features include an all-weather operator cabin, rear-view mirrors, tool kit, reflectors, and complete lighting. Optional accessories include a fly jib, man basket, air brakes, over-hoist warning, spark arrestor, and six-fall rope.

With operating weights of 11,500 kg (42′) and 11,050 kg (36′), the Indo Farm Power-14 Standard offers the ideal blend of strength, reach, and maneuverability for medium-to-heavy lifting operations in construction, logistics, and yard handling environments.
