Tadano TR-300EX

The Tadano TR-300EX is a 30-ton class rough terrain crane engineered for powerful lifting in confined and rugged environments. With its full-power telescoping boom extending from 9.1 to 28.6 meters, it delivers efficient and versatile lifting operations backed by Tadano’s reliable hydraulics and AML safety system.

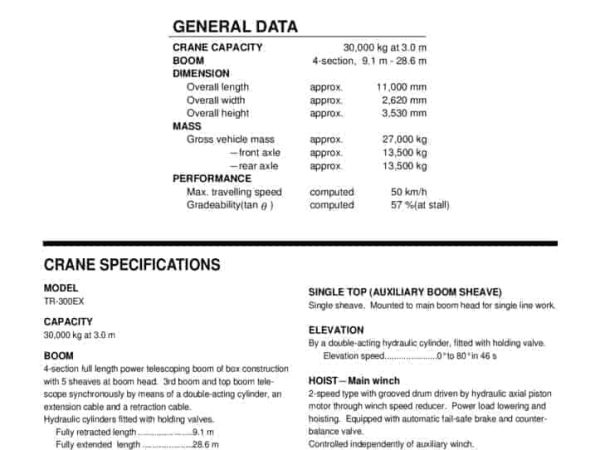

thumbnail of TR300EX spec mt en

⬇ DOWNLOADS ⬇

somdn_product_page

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Advertisement

Product Description

The Tadano TR-300EX is a robust 30,000 kg capacity rough terrain crane, featuring a 4-section full-power telescopic boom with a reach of 9.1 meters when retracted and up to 28.6 meters fully extended. Boom extension is synchronized using a double-acting hydraulic cylinder supported by extension and retraction cables, with a telescoping speed of 19.5 meters in 90 seconds. To further extend lifting reach, a 2-stage swingaround jib (7.2 m or 12.8 m) is available with triple offset positions at 5°, 25°, and 45°.

Its hoisting system includes separate main and auxiliary winches, each driven by hydraulic axial piston motors. The main winch offers a line pull of 31.4 kN and speed of 119 m/min, while the auxiliary provides 29.4 kN and the same line speed, each equipped with fail-safe braking and counterbalance valves. Swing operations are powered by an axial piston motor through a planetary reducer, offering continuous 360° rotation at a swing speed of 3.0 rpm.

Mounted on a rugged box-type chassis, the TR-300EX operates with a 4×4 drive system. The Mitsubishi 6D16-TUA diesel engine generates 158 kW at 2,800 rpm and 706 Nm torque at 1,250 rpm. A full automatic powershift transmission enables six forward and two reverse speeds, split between high and low range.

The crane incorporates a 3-mode steering system (2-wheel, 4-wheel coordinated, and crab steer), allowing a tight turning radius of 5.3 meters with 4-wheel mode. The hydraulic outriggers can extend to a full width of 6.3 meters, and are controlled either individually or simultaneously from the cab.

For operational safety and ease of use, Tadano equips the TR-300EX with its AML-L (Automatic Moment Limiter) system, which continuously monitors load conditions and cuts crane functions in case of overload. A single-operator cab located on the rotating superstructure includes a digital AML display, tachometer, sun visors, and foot-operated boom control pedals. The electrical system runs on a 24V setup with twin 120 Ah batteries.

Travel speed reaches up to 50 km/h and gradeability is rated at 57%. The gross vehicle weight stands at approximately 27,000 kg with equal front and rear axle loads. The TR-300EX is also equipped with a 300-liter fuel tank and 410-liter hydraulic oil tank. Tire size is 445/95R25 on both front and rear.

Overall, the TR-300EX delivers high performance in a compact package, ideal for off-road and tight-space lifting operations, while maintaining Tadano’s hallmark of durability and safety.
