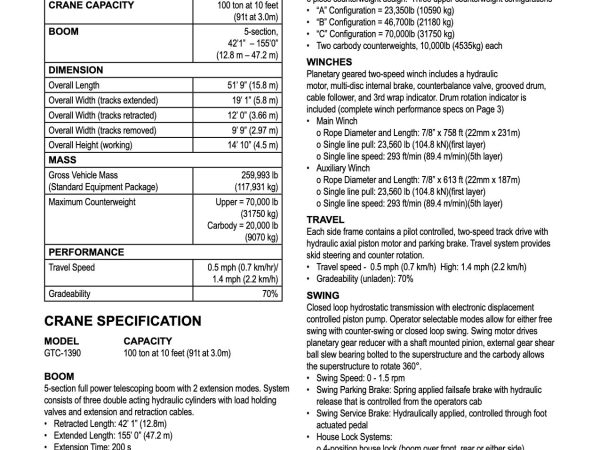

Tadano GTC-1390

The GTC-1390 is a 100 USt capacity machine with a full power, 5‐section (42.1 ft – 155 ft) boom designed for lift work while also capable of out‐of‐level, pick‐and‐carry, and foundation work. The main boom is complemented with a jib system including a 12.5 ft heavy lift jib, which is part of the standard bi‐fold jib with lengths of 33.5 ft to 59.1 ft. There are also optional 23 ft lattice insert (max 2) sections. The entire jib system can offset at 0°, 20°, and 40°, and when fully erected, gives a maximum tip height of 259 ft.
