MDT 269 J12

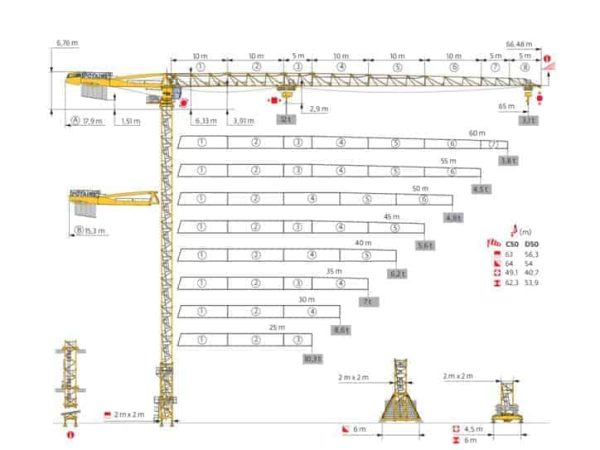

The Potain MDT 269 J12 flat top tower crane embodies a powerful blend of lifting capability and structural innovation, making it suitable for large construction projects demanding high performance and safety. The crane supports a maximum lifting capacity of 12 tonnes and can be configured with a jib reaching up to 65 meters. At this maximum reach, it can still handle significant loads thanks to the intelligent load distribution and structural engineering design that includes a 2-meter square mast configuration.

The crane features the 75 HPLTM hoisting winch, delivering speeds up to 220.5 meters per minute under lighter loads, ensuring both speed and efficiency. Its trolleying mechanism offers precise load placement, with a maximum lifting height under hook of over 67 meters. The MDT 269 J12 utilizes Potain’s Power Control system, which adjusts winch speeds based on available power, ensuring consistent performance under varying site conditions. The crane also includes the Potain Plus function, offering enhanced load curve management for greater lifting efficiency.

Its slewing mechanism (RVF 162 Optima+) ensures smooth rotation at speeds up to 0.8 rpm, enhancing maneuverability in tight urban construction sites. Structurally, the crane uses modular mast sections like T 61 and the 649 series, allowing versatile height configurations and simplified transport. With counter-jib elements and load-bearing parts optimized for container transport, logistics are made more efficient. Overall, the MDT 269 J12 is a robust and technologically advanced solution for modern high-rise and large-scale construction.
